Building Smart Semantic Search using PostgreSQL and pgvector. Case Study - Part 2 - Postgres Layer

I’ll explain how I built the Postgres layer for semantic vector search on the Percona Community website: pgvector, chunks, two table modifications, the database schema, how the indexer populates Postgres, and what the SELECT statement looks like during a search.

Part 1: why semantic search, what’s already working on the site, the widget, and an overview of the stack.

Architecture

Search runs separately from the website at search.percona.community: FastAPI, a background indexer, and PostgreSQL with pgvector are all in a single Docker Compose file. percona.community remains static on Hugo and GitHub Pages, it doesn’t write directly to the database.

  flowchart TB
    subgraph users["Users"]
        direction TB
        User(["User"]) --> Widget["Widget · percona.community"]
        Admin(["Admin"]) --> Dash["Admin dashboard · /demo"]
        Site["Site · RSS + HTML"]
    end

    subgraph app["Application"]
        direction TB
        API["FastAPI · search.percona.community"]
        Model["nomic-embed-text-v1"]
        Worker["Indexer worker"]
        API -->|embed query| Model
        Model -->|embedding| API
        Worker -->|embed chunks| Model
        Model -->|embeddings| Worker
    end

    subgraph data["Database"]
        direction TB
        DB[("PostgreSQL + pgvector")]
    end

    Widget --> API
    Dash --> API
    Site --> Worker
    API -->|read vectors · write queue/history| DB
    Worker -->|write vectors · read queue| DB

Search

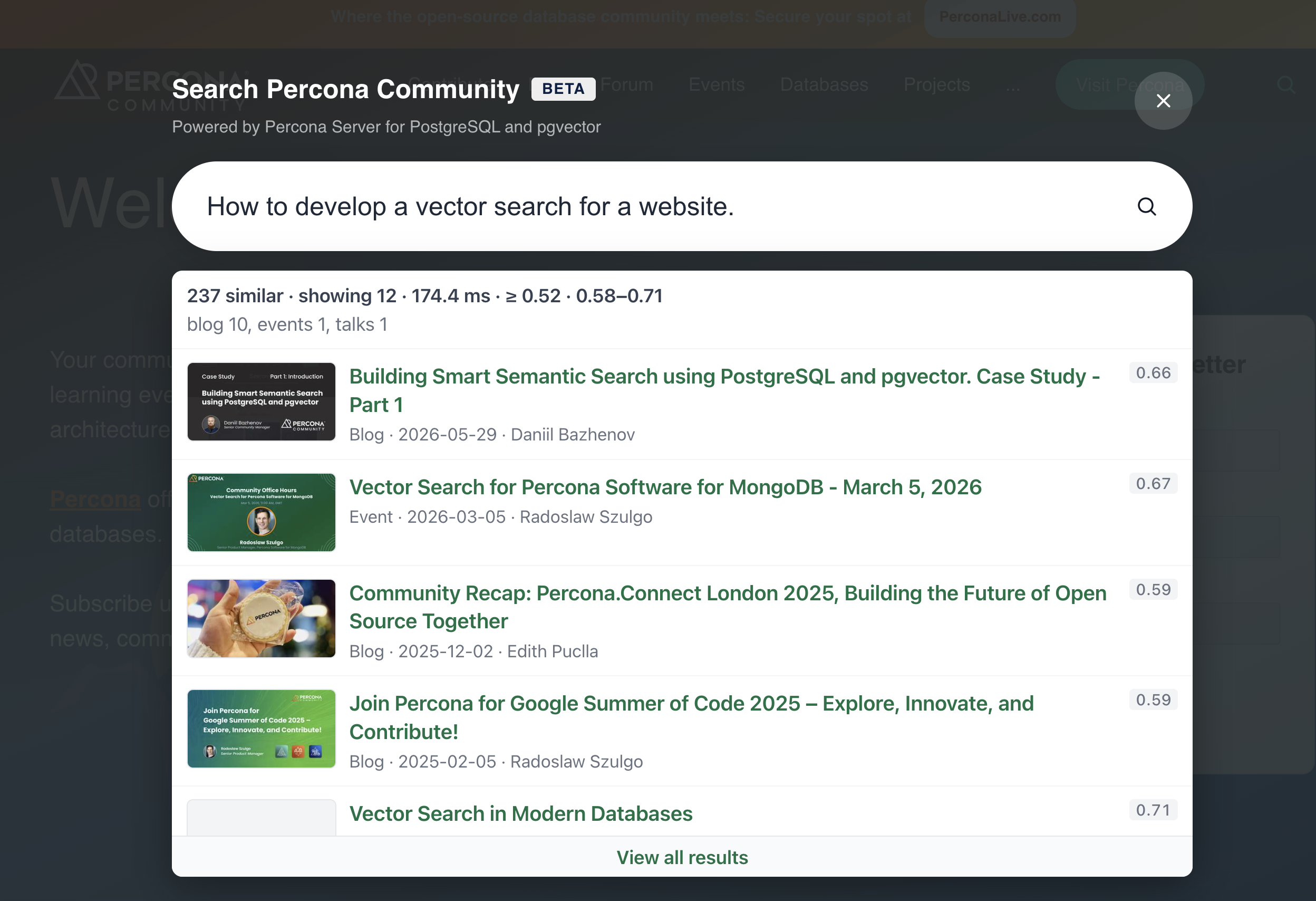

A visitor enters a query into the widget. The widget sends a POST /search request to FastAPI. The service computes the query embedding with nomic with the prefix search_query: and searches for the nearest vectors in Postgres. The widget knows nothing about pgvector, it only receives JSON with links.

Admin dashboard

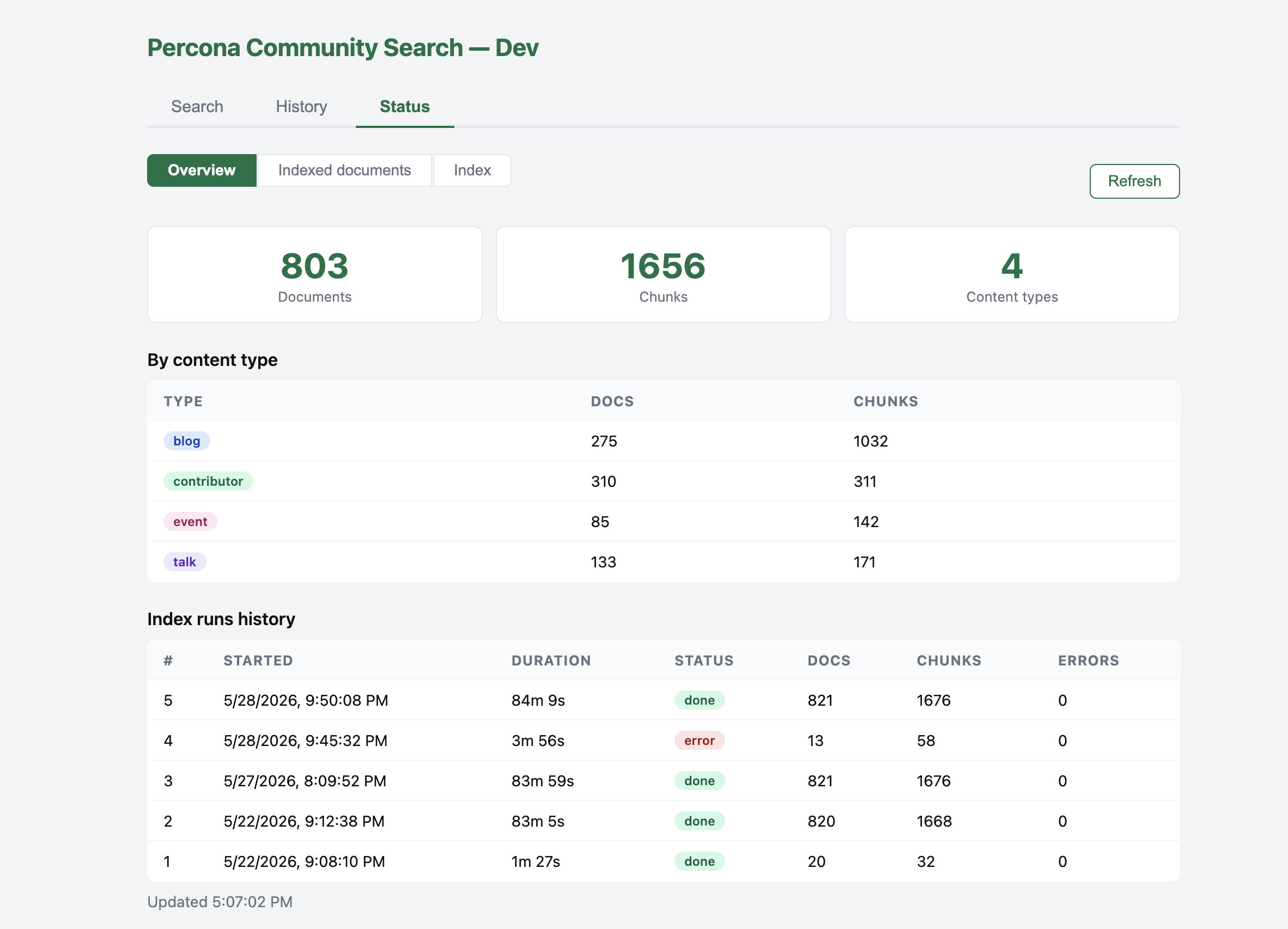

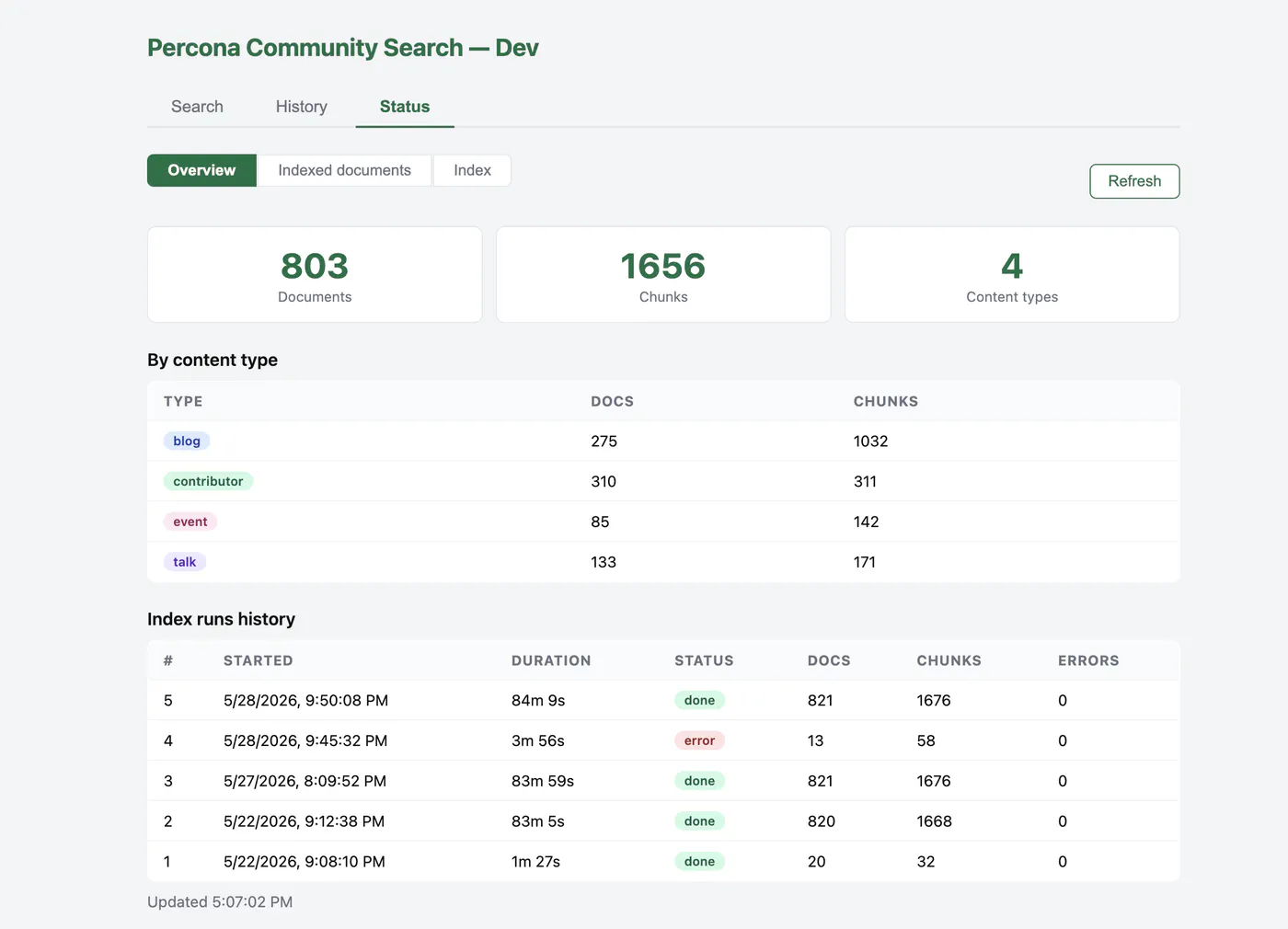

On the same FastAPI service I run an admin dashboard at /demo: test queries, search history, a database summary, viewing documents and chunks. The dashboard does not talk to Postgres directly, it only calls the API; the API reads and writes Postgres (search_history, index_queue, search results).

Indexing

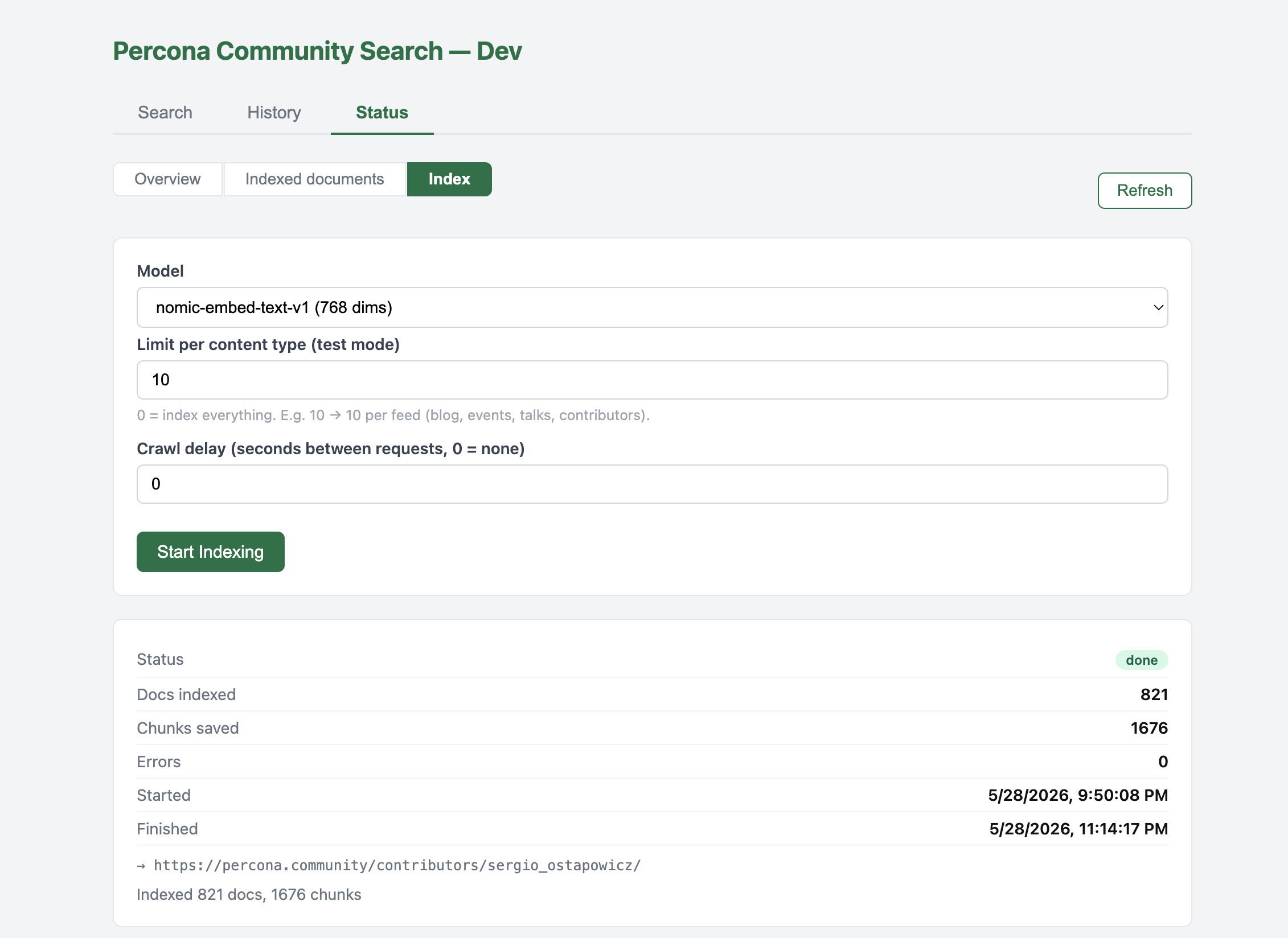

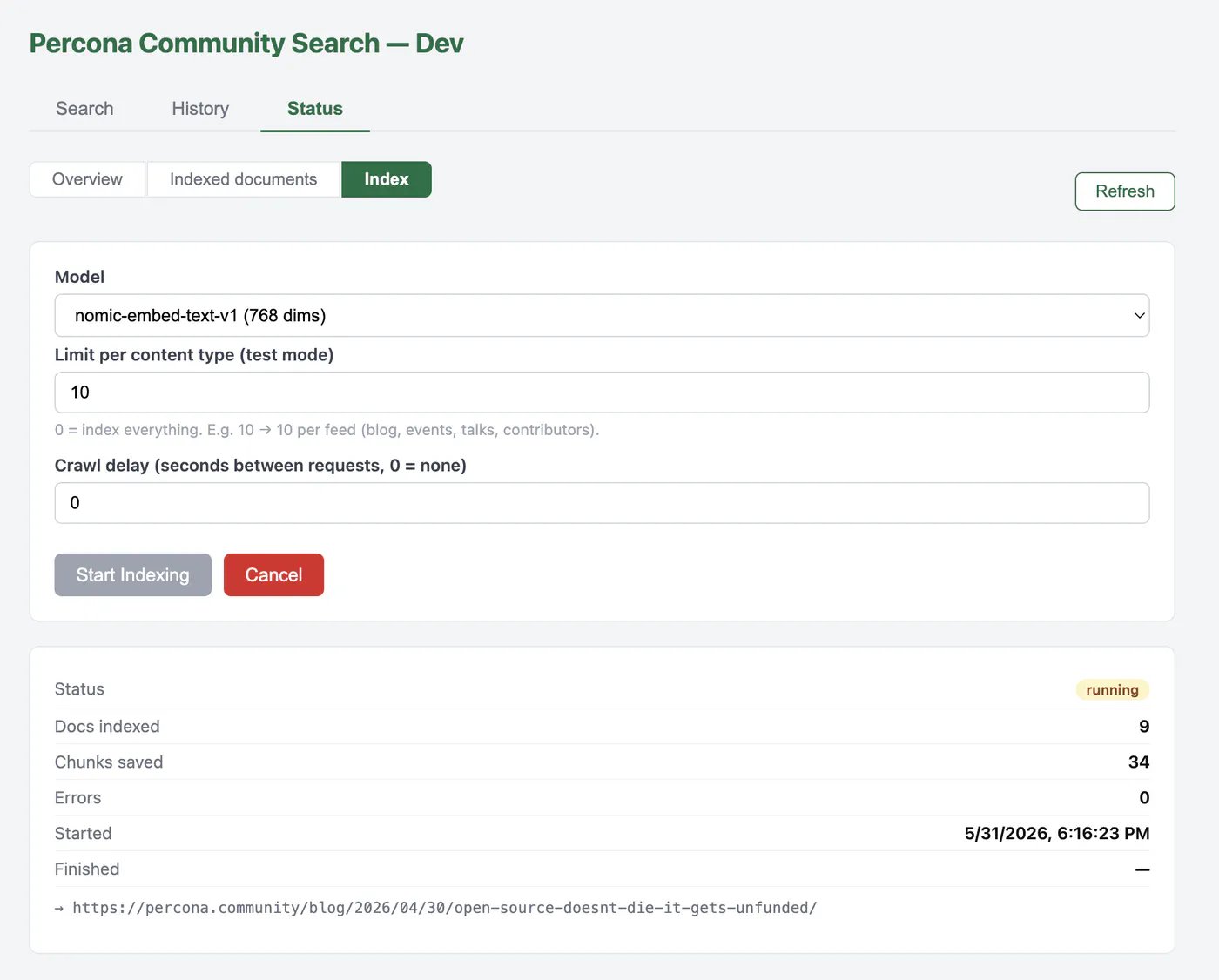

To refresh the index, I click Start Indexing in the dashboard, that hits POST /index/start. The same endpoint can be called from outside: a GitHub webhook after a push to the site repo, cron, or curl while debugging. FastAPI enqueues the job in index_queue. A worker in the indexer container picks it up, downloads RSS and HTML from the site, splits text into chunks, computes vectors with nomic (search_document:), and writes to pages, community_nomic, and indexer_runs. The crawl runs in the background and does not block HTTP.

Important limitation: the indexer and the API must use the same embedding model. The query vector and the vectors in the database must be from the same space, otherwise, cosine similarity doesn’t make sense.

pgvector in Postgres

For semantic search, you don’t need an LLM, but an embedding model: a string as input, a vector as output. I chose nomic-embed-text-v1, 768-dimensional, running via sentence-transformers on the CPU, without a paid API.

I’m using Percona Distribution for PostgreSQL 18, pgvector is already included in the distribution; CREATE EXTENSION vector, and you’re done (documentation).

The basic structure is a column with fixed dimensions for the model:

CREATE EXTENSION IF NOT EXISTS vector;

CREATE TABLE chunks (
    id         SERIAL PRIMARY KEY,
    chunk_text TEXT,
    embedding  vector(768)   -- exactly 768 under nomic
);

In the project, the table is named community_nomic: the prefix community_ (site) + the model key nomic. I’m setting up a comparison of embedding models: each model has its own vector table (community_<model>), because the dimensions and embedding spaces are different, so they can’t be mixed in a single table. Currently, there is one model in the project, nomic-embed-text-v1, 768 dimensions; later, I can add a second table community_<model_key> and switch the index/API via EMBEDDING_MODEL_KEY.

pgvector compares vectors with several distance operators. I search with cosine distance (the <=> operator in SQL): the smaller the distance, the closer the match. In the widget and API I show similarity, not the raw distance, similarity = 1 - distance, so a higher score means a better hit. The operators:

Simplified search for “nearest chunks”:

SELECT slug, chunk_text,
       1 - (embedding <=> $query_vector) AS score
FROM community_nomic
ORDER BY embedding <=> $query_vector
LIMIT 20;

The threshold in the API is min_score (my default is 0.52): anything lower is discarded. On beta I tuned this number for a while, the results changed noticeably depending on this single parameter.

To avoid scanning the entire table as the index grows, I set up an HNSW index (approximate nearest neighbor search):

CREATE INDEX ON community_nomic
  USING hnsw (embedding vector_cosine_ops);

At this scale, a separate vector database wasn’t necessary, a single Postgres instance handles metadata, vectors, and search.

Postgres in Docker: docker-compose

I set up the stack using Docker Compose, Postgres, the API, and the indexer are all in containers, with the same setup locally and in production. Production, EC2 on AWS (search.percona.community), an ARM instance, using the same docker-compose.

In docker-compose.yml, Postgres on Percona looks like this (on Mac ARM):

postgres:
  image: percona/percona-distribution-postgresql:18.1-3-arm64
  environment:
    POSTGRES_USER: postgres
    POSTGRES_PASSWORD: postgres
    POSTGRES_DB: community_search
  ports:
    - "5433:5432"
  volumes:
    - pgdata:/var/lib/postgresql/data
    - ./init:/docker-entrypoint-initdb.d

In init/01-enable-pgvector.sql, include only CREATE EXTENSION IF NOT EXISTS vector. If you’re developing on x86, use amd64 in the image tag instead of arm64, see the options in the Percona documentation. I left arm64 on both Mac and EC2: the configuration is the same.

I view the tables and data in pgAdmin. The pages, community_nomic, and service tables themselves are created when the API and indexer start using ensure_* functions in the code: these are CREATE TABLE IF NOT EXISTS and CREATE INDEX IF NOT EXISTS, not a separate migration directory.

Indexing and Chunking

The site doesn’t write directly to the database, the database is populated by an indexer: a worker fetches RSS and HTML from percona.community, splits the text into chunks, computes embeddings, and writes the rows to community_nomic and pages. The widget and API only read what has already been written during searches.

Why Chunks

At first, I tried a single vector for the entire article. I quickly ran into three problems:

• Long text takes longer to encode and consumes more memory;
• The model has an input length limit;
• a single vector for long text blurs the meaning, a query about a specific paragraph doesn’t map well to the “averaged” embedding of the entire article.

I settled on a 400-word window with a 50-word overlap (chunker.py). Each chunk is a separate line with its own embedding.

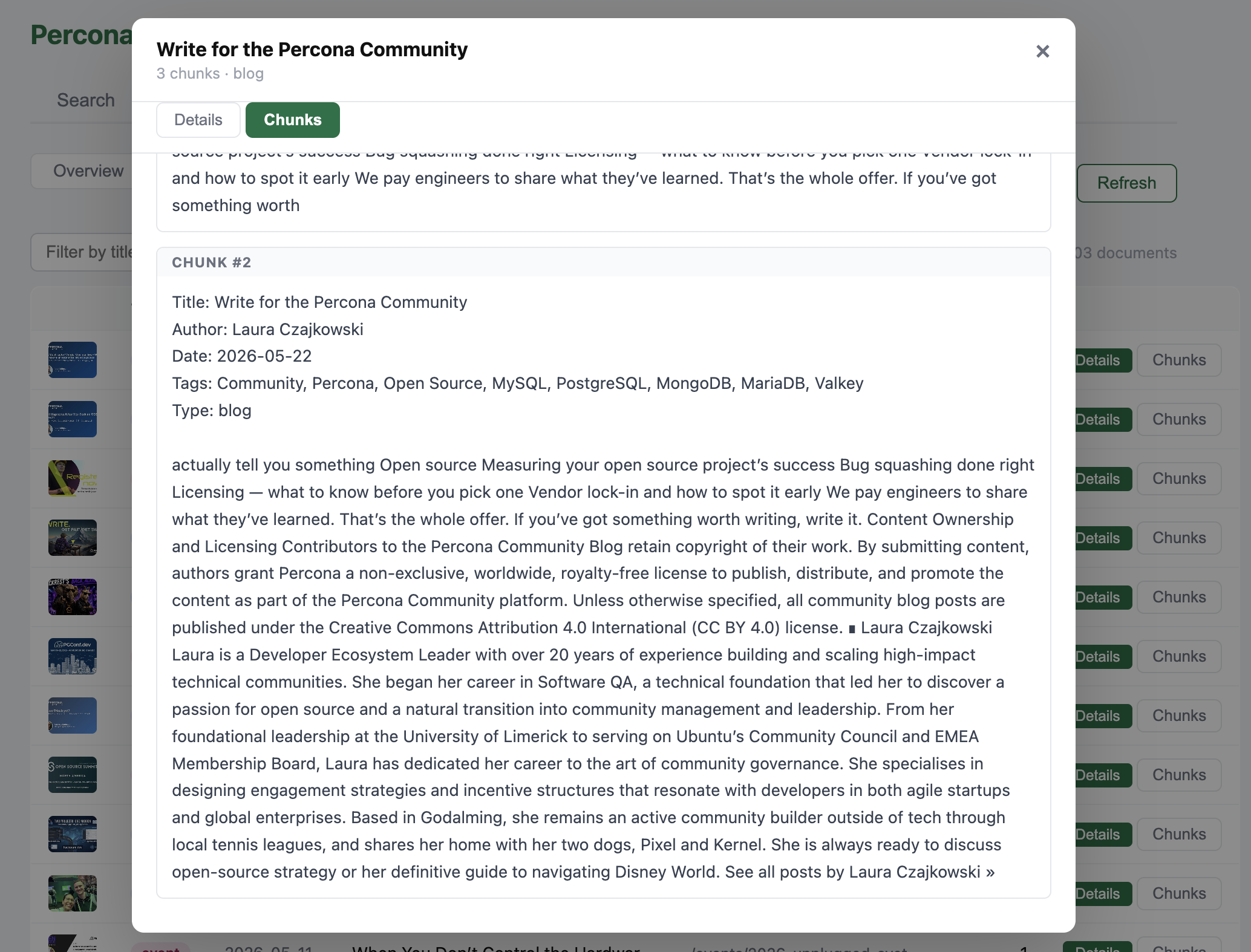

The first version of the chunker sliced only the body of the article, without the title, author, date, or tags. For queries like “articles by a certain author,” the results were off: the model saw the text but not the document’s context. I added metadata to each chunk, a Title / Author / Date / Tags / Type block at the beginning of each fragment before calculating the vector.

When searching, the API finds the closest chunks, but the card shows the best chunk for the document (one slug, one card). Without this, a long article would clutter the results with multiple lines.

Database Schema: Two Revisions of the Chunk Tables

I revised the chunk storage schema twice, and separately added utility tables for background indexing and search logs.

Version 1: Everything in a Single Table

The first working schema was a single table for all chunks and document information: each row represented a single article fragment, and it also contained duplicated page metadata (url, title, author, date, tags, content_type) along with chunk_text and embedding.

Pros: one INSERT, one SELECT, no joins.

Cons I encountered:

• one article, dozens of identical copies of title and author;
• when updating a page, it’s easy to get out of sync (one title in chunk #0, another in chunk #3);
• fetching the image and description for the card from chunk_text was unreliable.

Conclusion: A vector layer and a card in the UI serve different purposes.

The code still includes _migrate_chunks_table: when the API and indexer start up (inside ensure_content_table), it drops any extra columns from the chunk table if they are left over from the old prototype.

Version 2: pages + community_nomic

I split the data into two tables:

• pages, one row per document: url, title, type, author, date, tags, images, description.
• community_nomic, only chunks: slug, chunk_index, chunk_text, embedding.

They are linked by slug (stable key from the URL). Search: find the nearest chunks in community_nomic, assemble the card from pages.

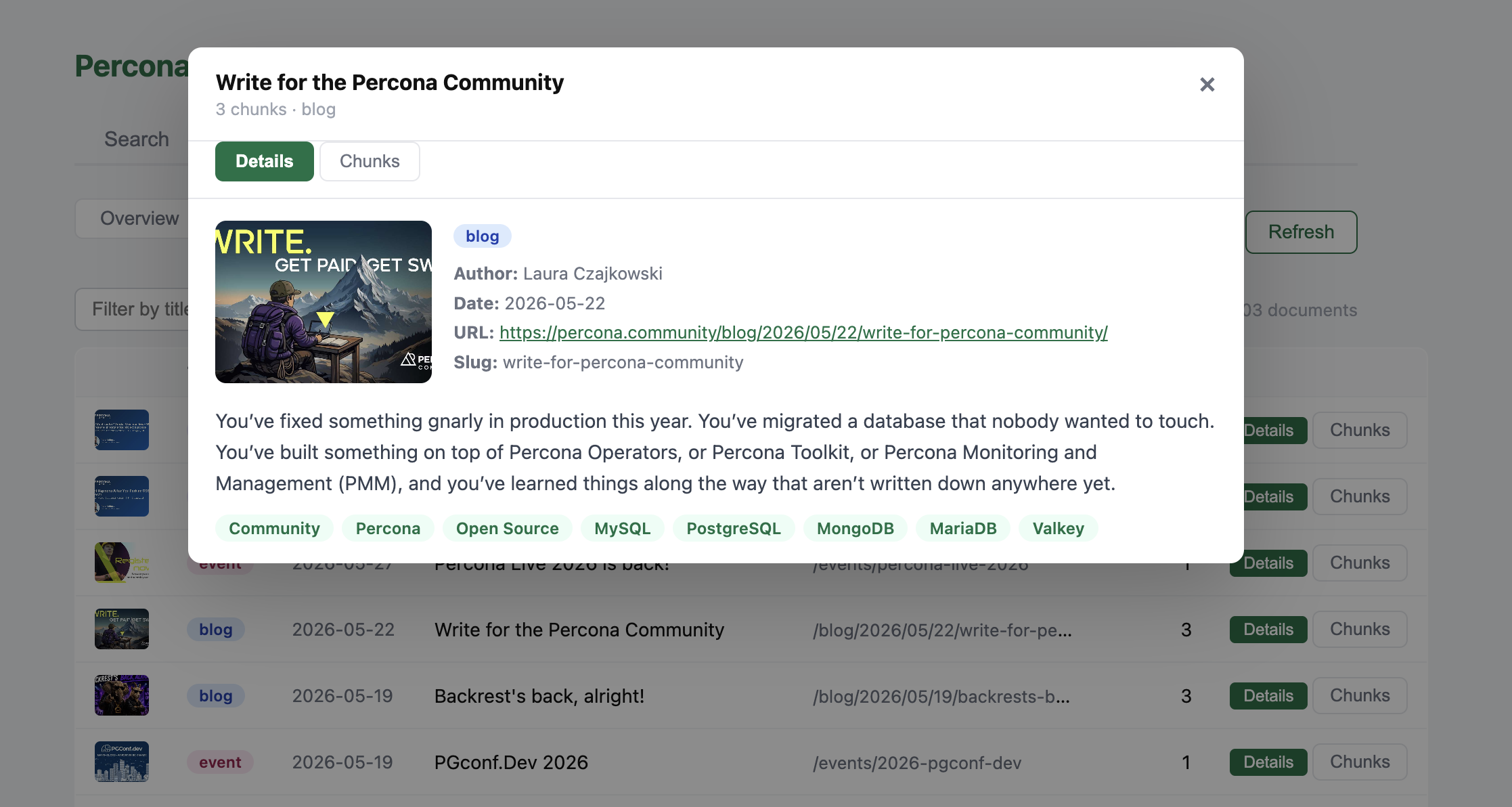

In the admin dashboard I can open any indexed document and see what landed in pages (metadata, image, description) and what text was split into chunks.

HNSW on community_nomic:

CREATE INDEX ... ON community_nomic
  USING hnsw (embedding vector_cosine_ops);

That’s why, when switching models, I don’t reuse community_nomic; instead, I create a new table and re-index it. A single search query involves vectors from only one model, both during indexing and in the API.

Indexer: RSS, HTTP, and Queue

The indexer is a separate container that crawls percona.community and populates the database. It starts with RSS, four feeds:

• blog/index.xml
• events/index.xml
• talks/index.xml
• contributors/index.xml

RSS feeds contain a title, link, date, author, tags, and often a short description, but not the full text of the article. For each entry, I perform an HTTP GET on the HTML page and extract the main content (in crawler.py). If the HTML is empty, I fall back to the description from the RSS feed.

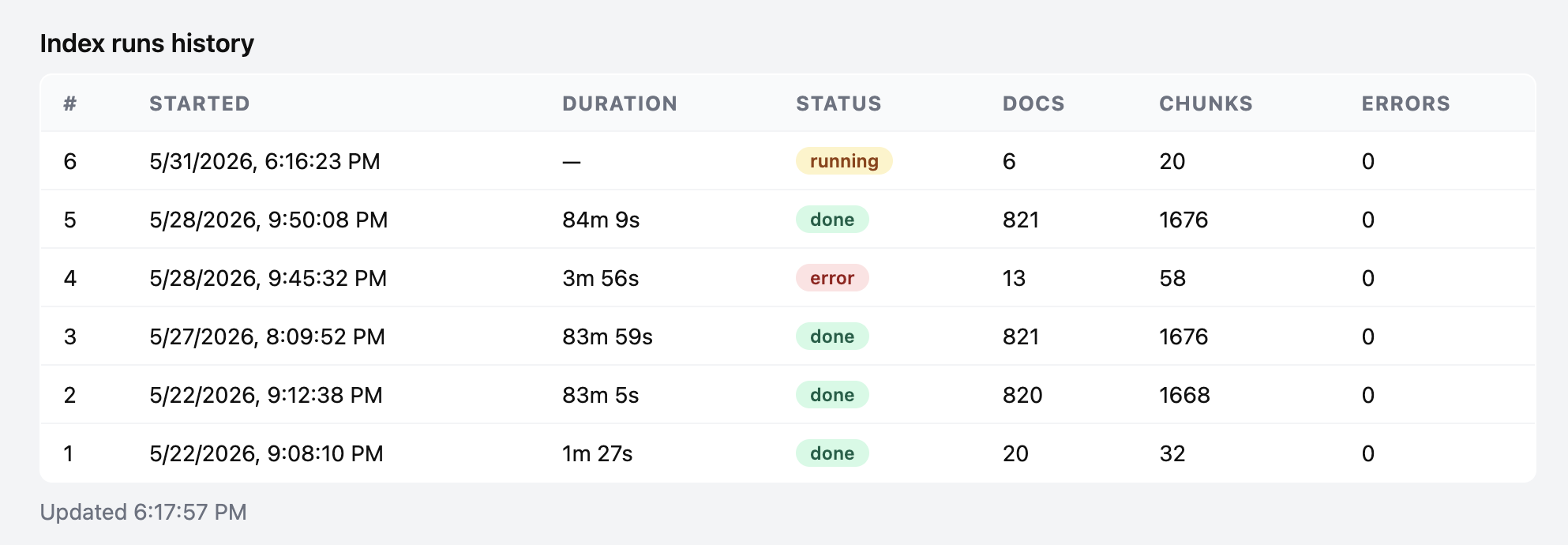

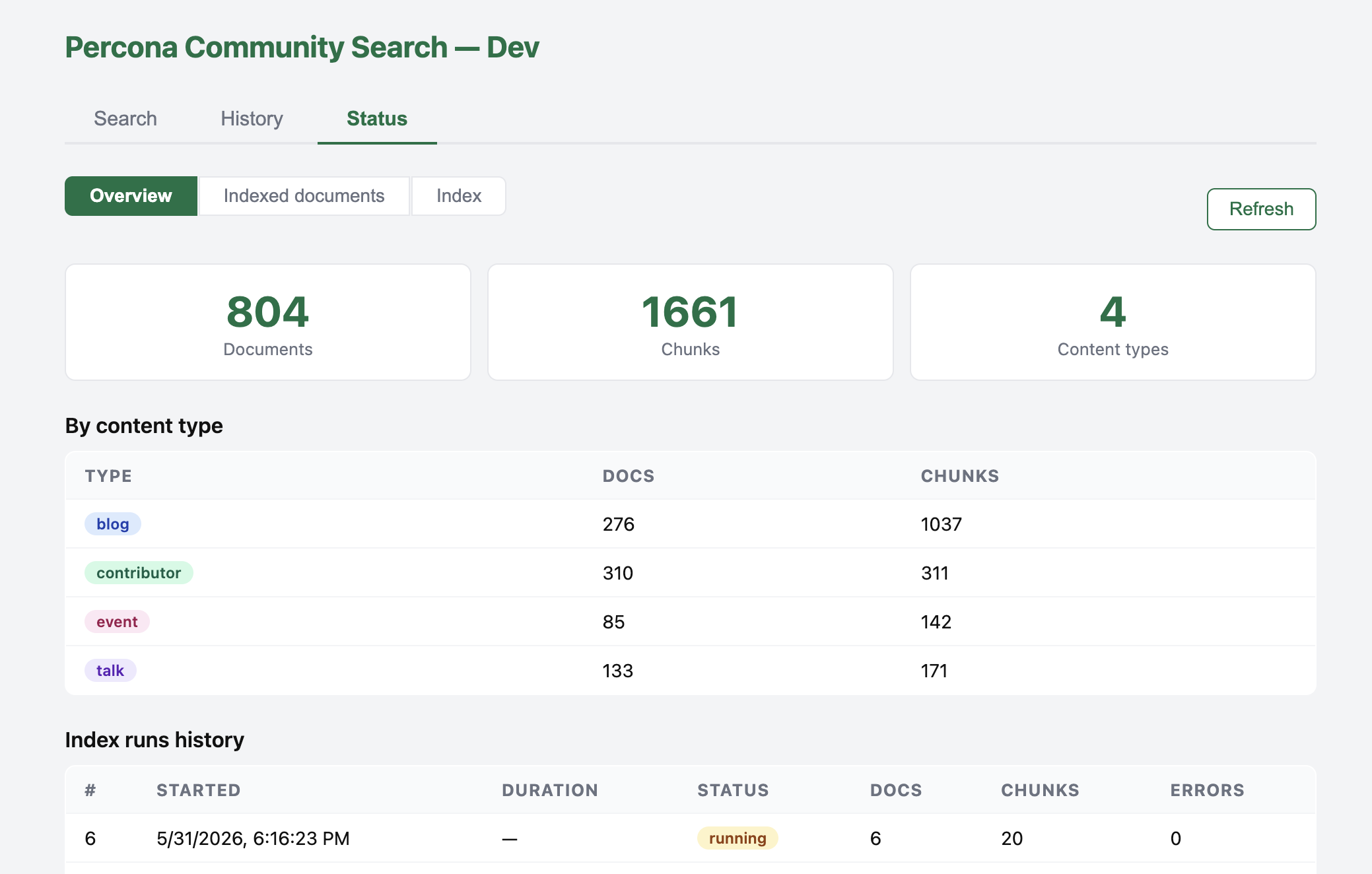

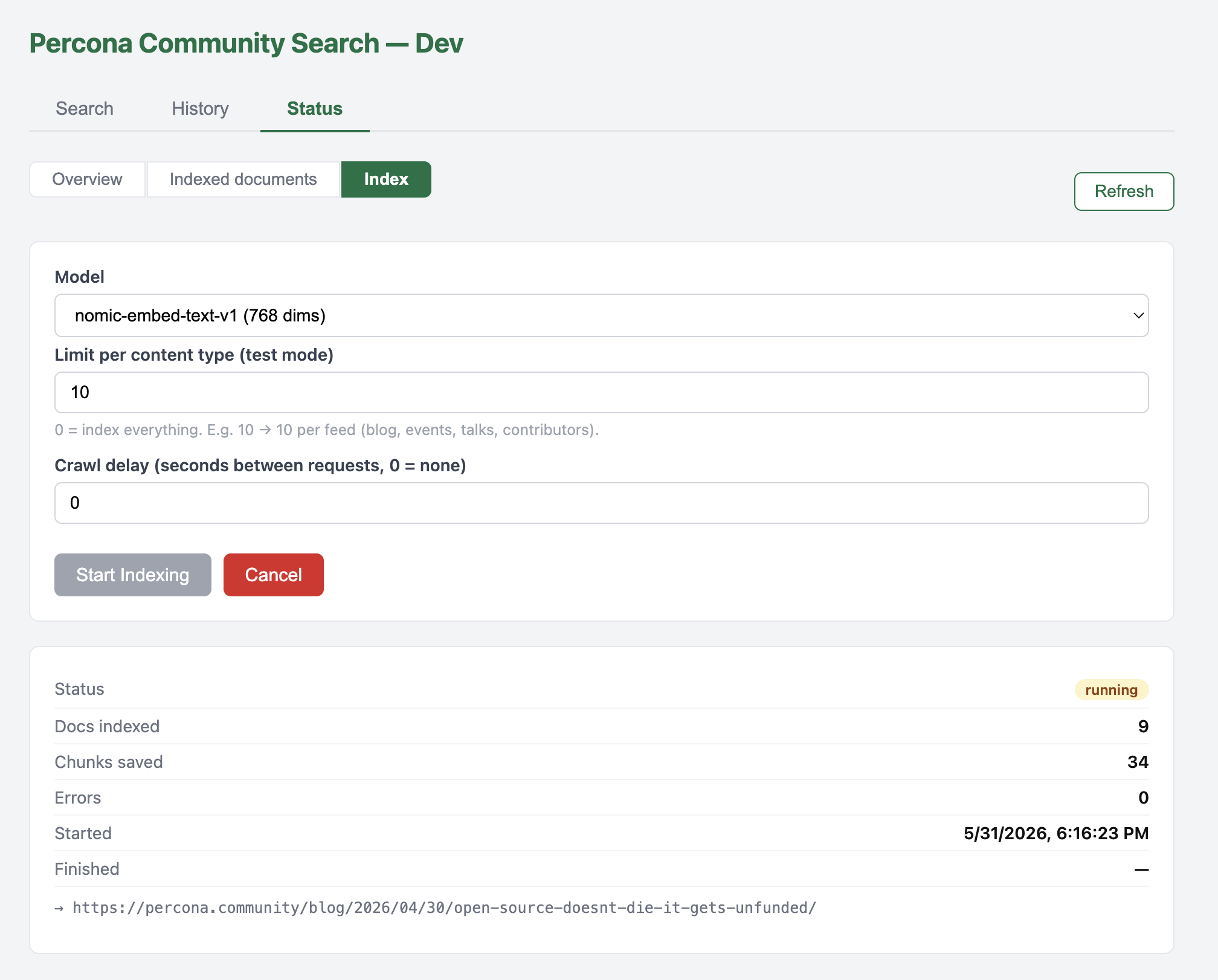

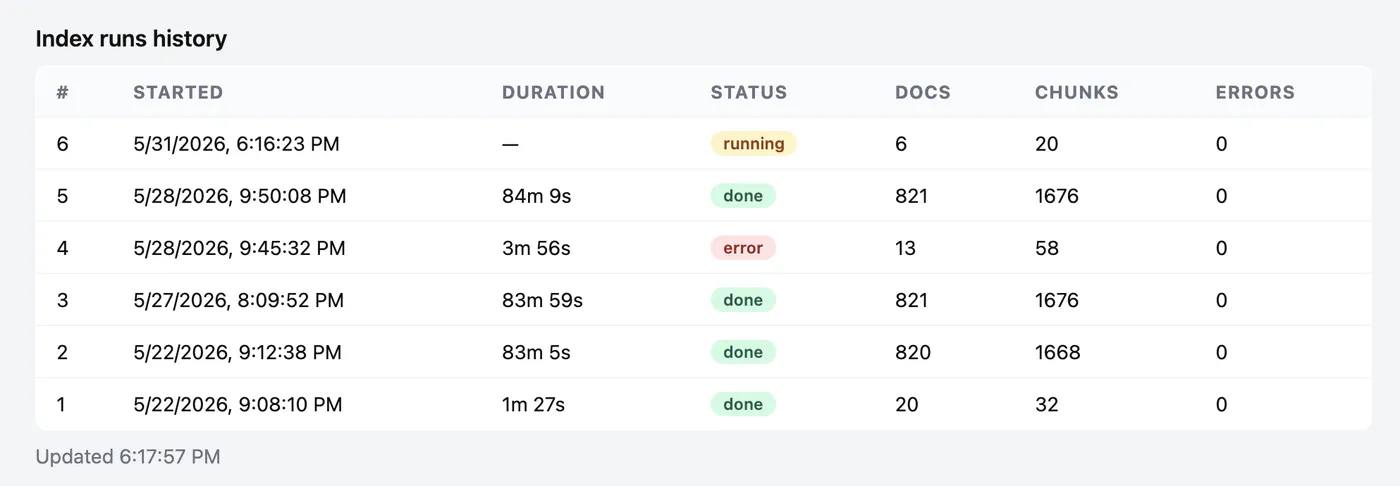

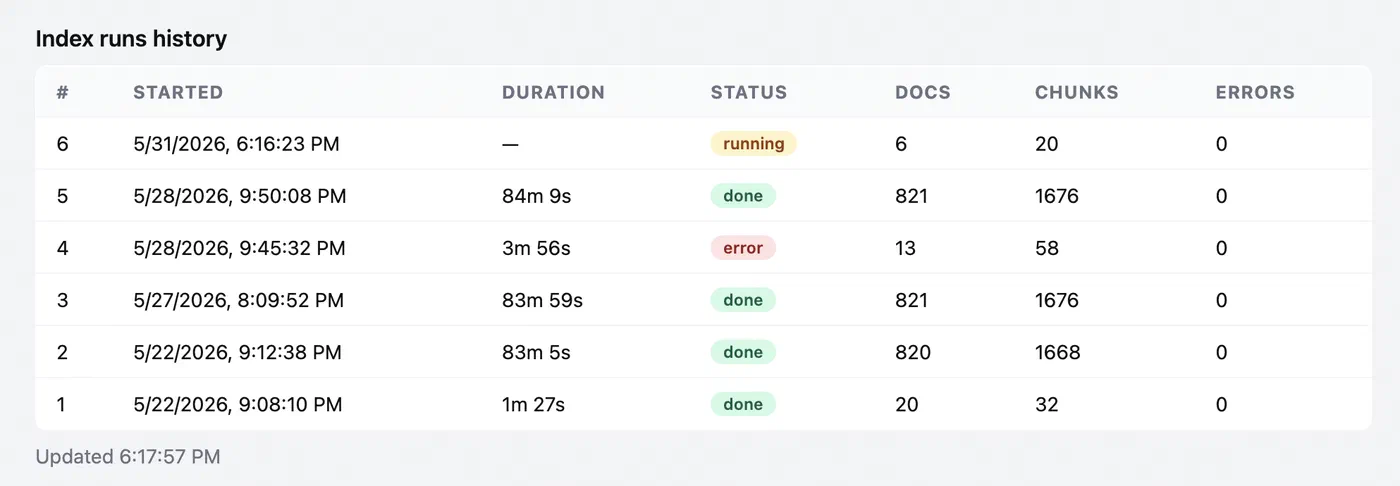

The Index and Status tabs in the dashboard, without them, debugging the crawl and embedding would have been a guessing game.

Table Schema

All tables are created when the API and indexer start (ensure_* in code, CREATE TABLE IF NOT EXISTS, CREATE INDEX IF NOT EXISTS). There is no separate migrations folder. I don’t use foreign keys between search and utility tables: reindexing deletes and re-inserts rows by slug, and the queue tables are only loosely linked.

Search data

pages and community_nomic are linked by slug (no FK). The indexer writes both; the API reads them on POST /search.

pages

One row per document.

community_nomic

Chunks and vectors (table name = site + model key).

Utility

Three small tables for indexing and debugging.

index_queue

Pending jobs. Written by the API.

indexer_runs

Crawl progress. Written by the indexer worker.

search_history

Search log. Written by the API on each POST /search.

Indexes

Created in the same ensure_* functions as the tables. Besides primary keys and UNIQUE on pages.url and (slug, chunk_index) in community_nomic:

• pages_content_type_idx on content_type, filter by blog / event / talk / contributor in search;
• community_nomic_embedding_idx, HNSW on embedding (vector_cosine_ops); without it, nearest-neighbor search would scan the whole table as chunks grow;
• community_nomic_slug_idx on slug, delete all chunks for one document on reindex;
• search_history_created_at_idx, recent queries first in the dashboard History tab.

index_queue and indexer_runs only have a serial primary key, few rows, a full scan is fine.

How Postgres Responds to a Search Query

The API receives the query text, computes a vector with nomic (search_query: + text), and runs SQL that finds the nearest chunks and joins row metadata from pages.

The First Query Was Naive

At first, I did what the pgvector tutorials suggest, “find the 20 closest vectors”:

SELECT slug, chunk_index, chunk_text,
       1 - (embedding <=> $query_vector) AS score
FROM community_nomic
ORDER BY embedding <=> $query_vector
LIMIT 20;

The query worked, but the results were incorrect from a UI perspective. It returns 20 chunks, not 20 documents. A long article with fifteen chunks could take up half the list with a single slug; a short post with one good paragraph didn’t make it to the top. The user sees pages (cards with links), but we search the database by chunks, I close that gap in SQL.

What I do now

1. Join community_nomic + pages by slug.
2. ROW_NUMBER() PARTITION BY slug, I keep one best chunk per document.
3. WHERE score >= min_score (default 0.52).
4. ORDER BY score DESC LIMIT N.

Simplified version of the final query:

WITH ranked AS (
    SELECT
        p.url, p.title, p.content_type, c.slug,
        1 - (c.embedding <=> $query_vector) AS score,
        ROW_NUMBER() OVER (
            PARTITION BY c.slug
            ORDER BY c.embedding <=> $query_vector
        ) AS rn
    FROM community_nomic c
    INNER JOIN pages p ON p.slug = c.slug
    -- AND p.content_type = 'blog'   -- optional: filter by type
),
best_per_page AS (
    SELECT * FROM ranked WHERE rn = 1
)
SELECT url, title, content_type, slug, score
FROM best_per_page
WHERE score >= 0.52
ORDER BY score DESC
LIMIT 20;

Filtering by content type

The site has blog, event, talk, and contributor, in the widget and on /search/, you can search for all at once or a single type. In the API, this is the content_type field in POST /search; in SQL, AND p.content_type = %s is added when a single type is selected.

Sort order in the widget

In SQL, results are ranked by similarity (ORDER BY score DESC), “what matches the query best?”

On a community site, recent material often matters as much as the top semantic match. An older article might score 0.71 while a newer post on the same topic scores 0.66. I still build the shortlist in SQL (one best chunk per document, min_score threshold), but the API then re-sorts blog, event, and talk by publication date, newest first. Contributors and rows without a date stay at the bottom.

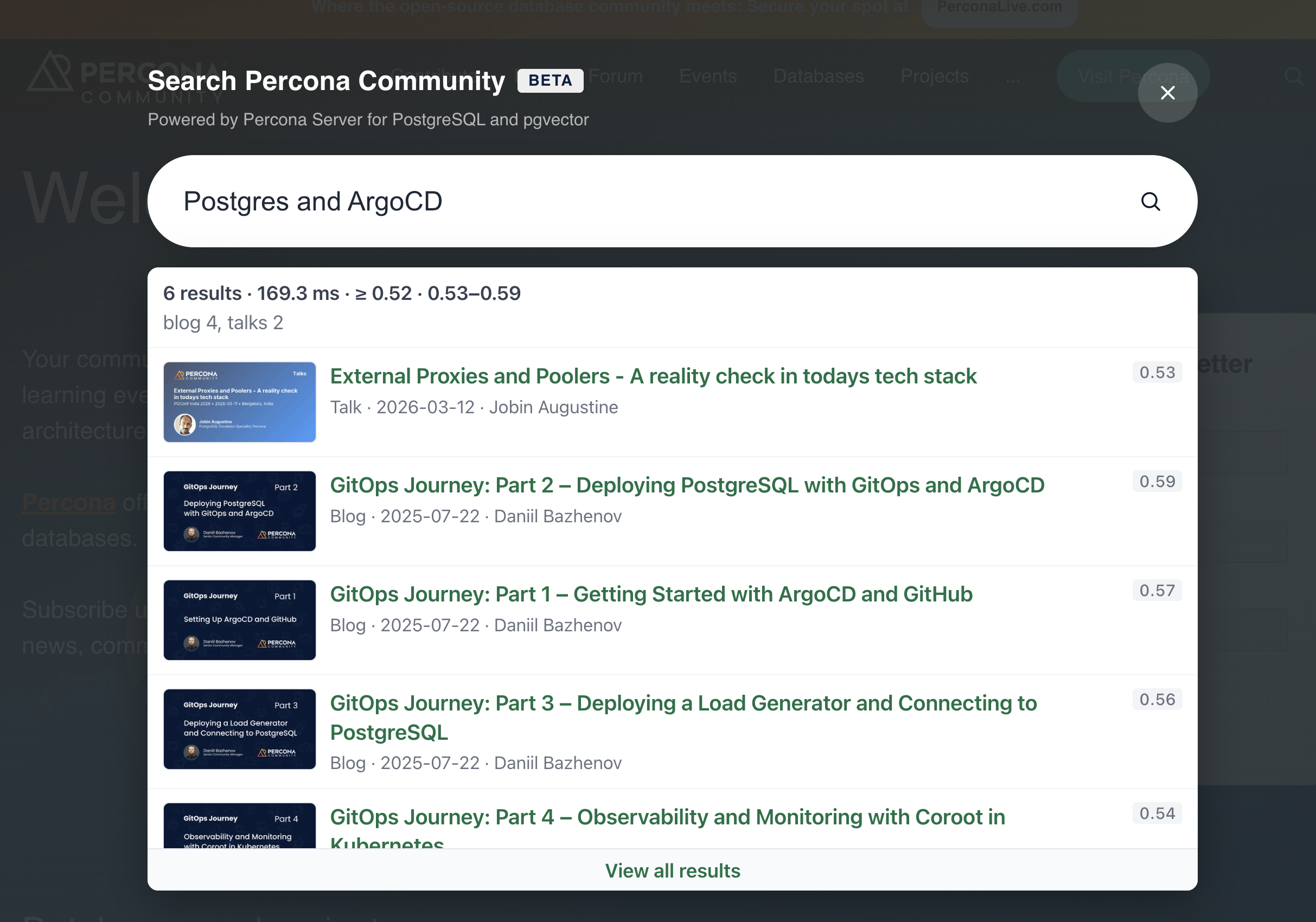

The widget still shows the similarity score on each card so you can see why the page was included:

Summary

Postgres layer: I set this up without a separate vector DB, using pgvector in Percona, two table modifications for chunking, auxiliary tables for background indexing, HNSW, and SQL with “best-fit chunk per document.” The indexer processes RSS and HTML; I manage the database in pgAdmin.

Currently, the search index has about 803 documents and 1,656 vectors, thousands of rows, not billions. This is a community-scale setup: a single Postgres instance on EC2, embedding on the CPU, HNSW on all chunks, the solutions above were chosen with this in mind. When I add videos, GitHub issues, and the forum, the volume will grow, then I’ll re-evaluate the indexing time and hardware.

Note from the author

About six months ago, I already tried to set up something similar to Postgres + vectors using AI agents. Back then, I kept running into the same issues: a clunky startup of the environment, the schema and its modifications, initializing Percona Distribution for PostgreSQL, and pgvector, the agent would either skip a step or suggest incompatible configuration snippets.

This time, with percona.community, went better: the agent set up Compose, ensure_*, search SQL, and the admin dashboard, without that series of failures at startup. More time was spent on the logic (chunks, min_score, result ordering) rather than on “why the database won’t start.”

If you try this setup yourself or notice any inaccuracies, please leave a comment. ∎
