Deploying Tarantool Cartridge Applications with Zero Effort (Part 2)

We have recently talked about how to deploy a Tarantool Cartridge application. However, an application’s life doesn’t end with deployment, so today we will update our application and figure out how to manage topology, sharding, and authorization, and change the role configuration.

Feeling interested? Please continue reading under the cut.

Where did we leave off?

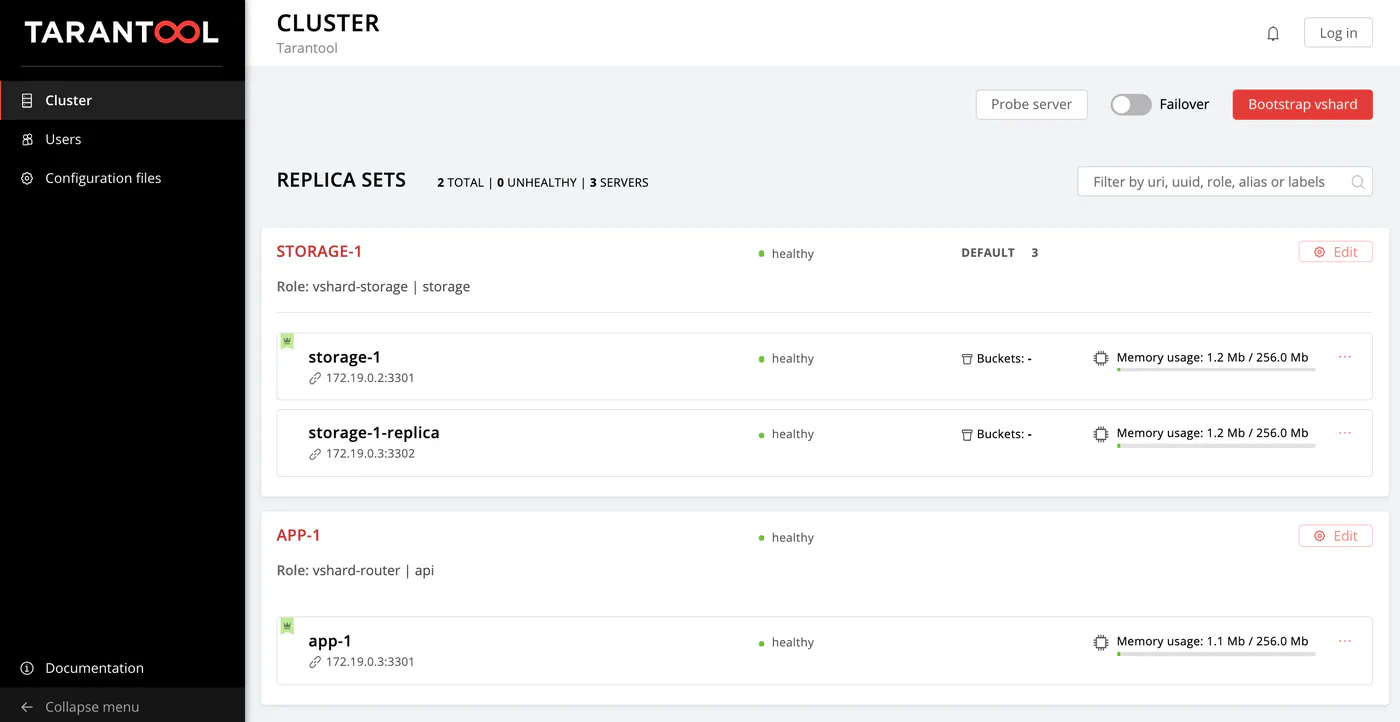

Last time, we set up the following topology:

If you have followed all the steps from the previous part of this tutorial, you now have a cluster configuration with two storage replica sets in the hosts.yml  file (hosts.updated.yml in the repository).

First, start the virtual machines:

$ vagrant up

You should already have an up to date version of the Tarantool Cartridge Ansible role installed. Just in case, run the following command:

$ ansible-galaxy install tarantool.cartridge,1.1.0

So, the current cluster configuration:

---
all:
  vars:
    # common cluster variables
    cartridge_app_name: getting-started-app
    cartridge_package_path: ./getting-started-app-1.0.0-0.rpm  # path to package

    cartridge_cluster_cookie: app-default-cookie  # cluster cookie

    # common ssh options
    ansible_ssh_private_key_file: ~/.vagrant.d/insecure_private_key
    ansible_ssh_common_args: '-o IdentitiesOnly=yes -o UserKnownHostsFile=/dev/null -o StrictHostKeyChecking=no'

  # INSTANCES
  hosts:
    storage-1:
      config:
        advertise_uri: '172.19.0.2:3301'
        http_port: 8181

    app-1:
      config:
        advertise_uri: '172.19.0.3:3301'
        http_port: 8182

    storage-1-replica:
      config:
        advertise_uri: '172.19.0.3:3302'
        http_port: 8183

    storage-2:
      config:
        advertise_uri: '172.19.0.3:3303'
        http_port: 8184

    storage-2-replica:
      config:
        advertise_uri: '172.19.0.2:3302'
        http_port: 8185

  children:
    # GROUP INSTANCES BY MACHINES
    host1:
      vars:
        # first machine connection options
        ansible_host: 172.19.0.2
        ansible_user: vagrant

      hosts:  # instances to be started on the first machine
        storage-1:
        storage-2-replica:

    host2:
      vars:
        # second machine connection options
        ansible_host: 172.19.0.3
        ansible_user: vagrant

      hosts:  # instances to be started on the second machine
        app-1:
        storage-1-replica:
        storage-2:

    # GROUP INSTANCES BY REPLICA SETS
    replicaset_app_1:
      vars:  # replica set configuration
        replicaset_alias: app-1
        failover_priority:
          - app-1  # leader
        roles:
          - 'api'

      hosts:  # replica set instances
        app-1:

    replicaset_storage_1:
      vars:  # replica set configuration
        replicaset_alias: storage-1
        weight: 3
        failover_priority:
          - storage-1  # leader
          - storage-1-replica
        roles:
          - 'storage'

      hosts:   # replica set instances
        storage-1:
        storage-1-replica:

    replicaset_storage_2:
      vars:  # replicaset configuration
        replicaset_alias: storage-2
        weight: 2
        failover_priority:
          - storage-2
          - storage-2-replica
        roles:
          - 'storage'

      hosts:   # replicaset instances
        storage-2:
        storage-2-replica:

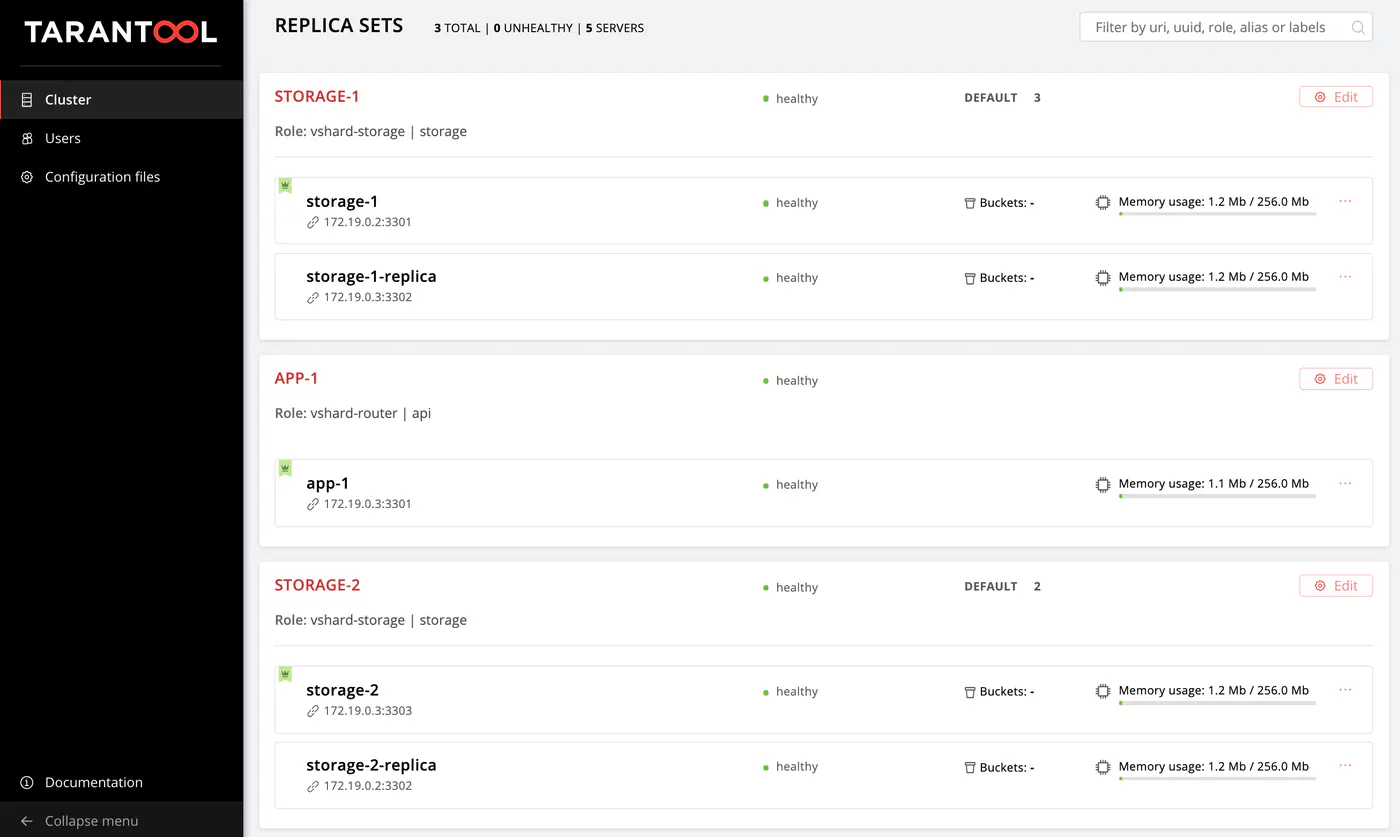

Go to http://localhost:8181/admin/cluster/dashboard and make sure that your cluster is operating correctly.

As before, we change this file step-by-step and watch how the cluster changes. You can always look up the final version in hosts.updated.2.yml.

Let’s start!

Updating the application

First, we are going to update our application. Make sure you have the getting-started-app-2.0.0-0.rpm file in your current directory (otherwise, download it from the repository).

Specify the path to a new version of the package:

---
all:
  vars:
    cartridge_app_name: getting-started-app
    cartridge_package_path: ./getting-started-app-2.0.0-0.rpm  # <==
    cartridge_enable_tarantool_repo: false  # <==

We have set cartridge_enable_tarantool_repo: false so that the role does not include the repository with the Tarantool package that we had already installed last time. It slightly speeds up the deployment process but it isn’t obligatory. Run the playbook with the cartridge-instances tag:

$ ansible-playbook -i hosts.yml playbook.yml
                   --tags cartridge-instances

And check that the package has been updated:

$ vagrant ssh vm1
[vagrant@svm1 ~]$ sudo yum list installed | grep getting-started-app

Check that the version is 2.0.0 :

getting-started-app.x86_64          2.0.0-0            installed

Now you can safely try out the new version of the application.

Enabling sharding

Let’s enable sharding so that we can later get to managing storage replica sets. It’s an easy thing to do. Add the cartridge_bootstrap_vshard  variable to the all.vars  section:

---
all:
  vars:
    ...
    cartridge_cluster_cookie: app-default-cookie  # cluster cookie
    cartridge_bootstrap_vshard: true  # <==
    ...
  hosts:
    ...
  children:
    ...

Run:

$ ansible-playbook -i hosts.yml playbook.yml
                   --tags cartridge-config

Note that we have specified the cartridge-config tag to run only the tasks related to the cluster configuration.

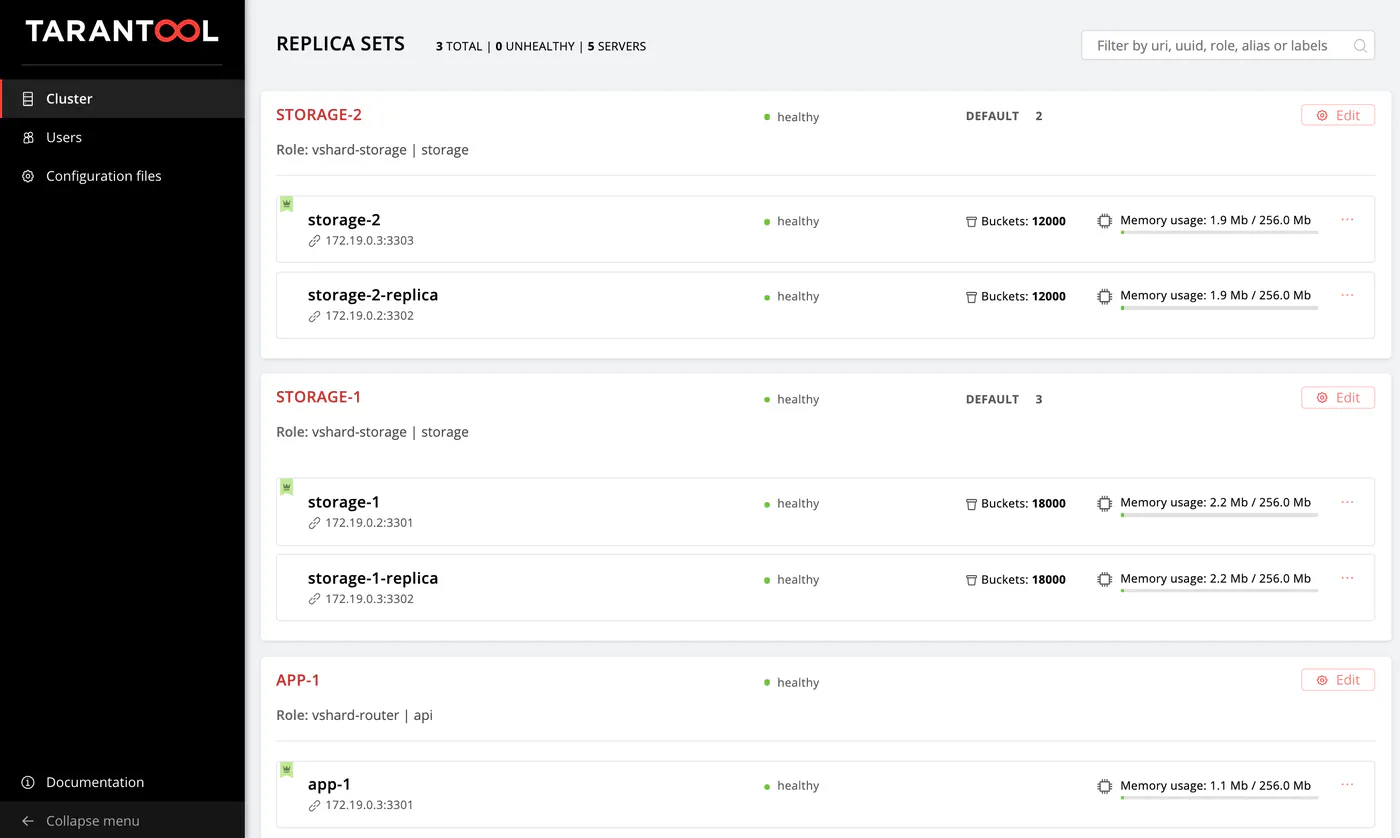

Open the Web UI http://localhost:8181/admin/cluster/dashboard and note that the buckets are distributed among storage replica sets as 2:3  (as you may recall, we specified these weights for the replica sets):

Enabling automatic failover

Now we are going to enable the automatic failover mode in order to find out what it is and how it works. Add the cartridge_failover flag to the configuration:

---
all:
  vars:
    ...
    cartridge_cluster_cookie: app-default-cookie  # cluster cookie
    cartridge_bootstrap_vshard: true
    cartridge_failover: true  # <==
    ...
  hosts:
    ...
  children:
    ...

Start cluster management tasks again:

$ ansible-playbook -i hosts.yml playbook.yml
                   --tags cartridge-config

When the playbook finishes successfully, you can go to the Web UI and make sure that the Failover switch in the top right corner is now switched on. To disable the automatic failover mode, simply change the value of cartridge_failover to false and run the playbook again.

Now let’s take a closer look at this mode and see why we enabled it.

Looking into failover

You have probably noticed the failover_priority variable that we specified for each replica set. Let’s look into it.

Tarantool Cartridge provides an automatic failover mode. Each replica set has a leader, that is, the instance where the record is written. If anything happens to the leader, one of the replicas takes over its role. Which one? Look at the storage-2 replica set:

---
all:
  ...
  children:
    ...
    replicaset_storage_2:
      vars:
        ...
        failover_priority:
          - storage-2
          - storage-2-replica

In failover_priority, we specified the storage-2 instance as the first one. In the Web UI, it is the first one in the replica set instance list and is marked with a green crown. This is the leader, or the first instance specified in failover_priority :

Now let’s see what happens if something is wrong with the replica set leader. Go to the virtual machine and stop the storage-2 instance:

$ vagrant ssh vm2
[vagrant@vm2 ~]$ sudo systemctl stop getting-started-app@storage-2

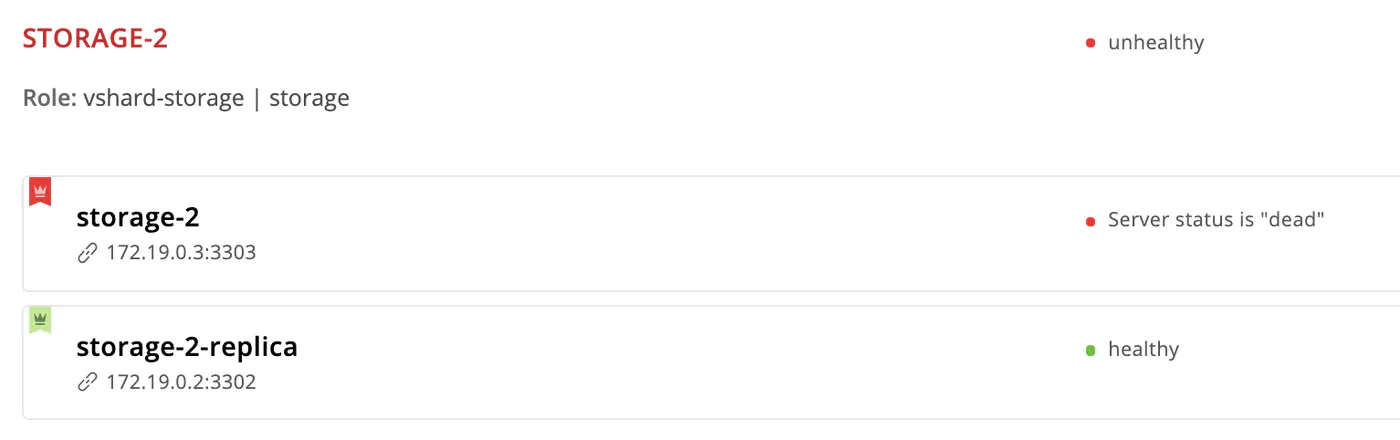

Back to the Web UI:

The crown of the storage-2 instance turns red, which means that the assigned leader is unhealthy. But storage-2-replica now has a green crown, so this instance took over the leader role until storage-2 comes back into operation. This is the automatic failover in action.

Let’s bring storage-2 back to life:

$ vagrant ssh vm2
[vagrant@vm2 ~]$ sudo systemctl start getting-started-app@storage-2

Everything is back to normal:

---
all:
  vars:
    ...
  hosts:
    ...
  children:
    ...
    replicaset_storage_2:
      vars:  # replicaset configuration
        ...
        failover_priority:
          - storage-2-replica  # <==
        ...

Run cartridge-replicasets  tasks for instances from the replicaset_storage_2  group:

$ ansible-playbook -i hosts.yml playbook.yml
                   --limit replicaset_storage_2
                   --tags cartridge-replicasets

Go to http://localhost:8181/admin/cluster/dashboard and check that the leader has changed:

Expelling instances

What if you want to expel an instance from the topology? It is straightforward: just assign the expelled flag to it. Let’s expel the storage-2-replica  instance. It is the leader now, so Cartridge will not let us do this. But we’re not afraid so we’ll try:

---
all:
  vars:
    ...
  hosts:
    storage-2-replica:
      config:
        advertise_uri: '172.19.0.2:3302'
        http_port: 8185
      expelled: true  # <==
  ...

We specify the cartridge-replicasets  tag because expelling an instance is a change in topology:

$ ansible-playbook -i hosts.yml playbook.yml
                   --limit replicaset_storage_2
                   --tags cartridge-replicasets

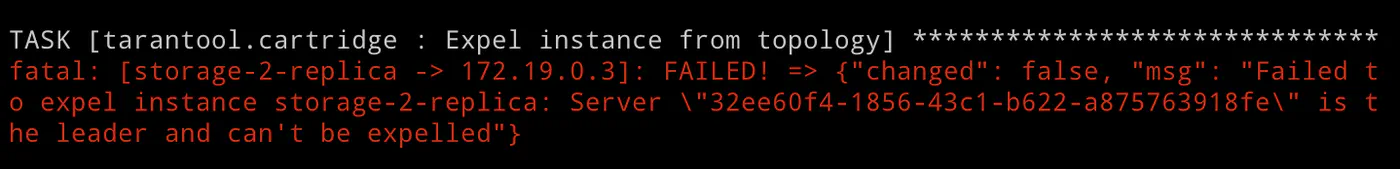

Run the playbook and observe the error:

---
all:
  vars:
    ...
  hosts:
    ...
  children:
    ...
    replicaset_storage_2:
      vars:  # replicaset configuration
        ...
        failover_priority:
          - storage-2 # <==
        ...

$ ansible-playbook -i hosts.yml playbook.yml
                   --limit replicaset_storage_2
                   --tags cartridge-replicasets

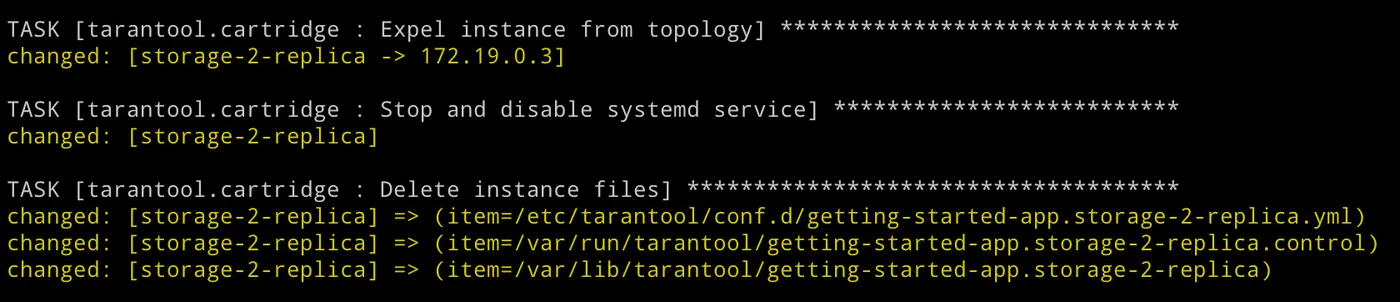

And so storage-2-replica disappears from the topology!

Please note that the instance is expelled permanently and irrevocably. After removing the instance from the topology, our Ansible role stops the systemd service and deletes all the files of this instance.

If you suddenly change your mind and decide that the storage-2 replica set still needs a second instance, you will not be able to restore it. Cartridge remembers the UUIDs of all the instances that have left the topology and will not allow the expelled one to return. You can start a new instance with the same name and configuration, but its UUID will obviously be different, so Cartridge will allow it to join.

Deleting replica sets

We have already found out that the replica set leader cannot be expelled. But what if we want to remove thestorage-2 replica set permanently? Of course, there is a solution. In order not to lose the data, we must first transfer all the buckets to storage-1 . For this purpose, we set the weight of the storage-2 replica set to 0 :

---
all:
  vars:
    ...
  hosts:
    ...
  children:
    ...
    replicaset_storage_2:
      vars:  # replicaset configuration
        replicaset_alias: storage-2
        weight: 0  # <==
        ...
  ...

Start the topology control tasks:

$ ansible-playbook -i hosts.yml playbook.yml
                   --limit replicaset_storage_2
                   --tags cartridge-replicasets

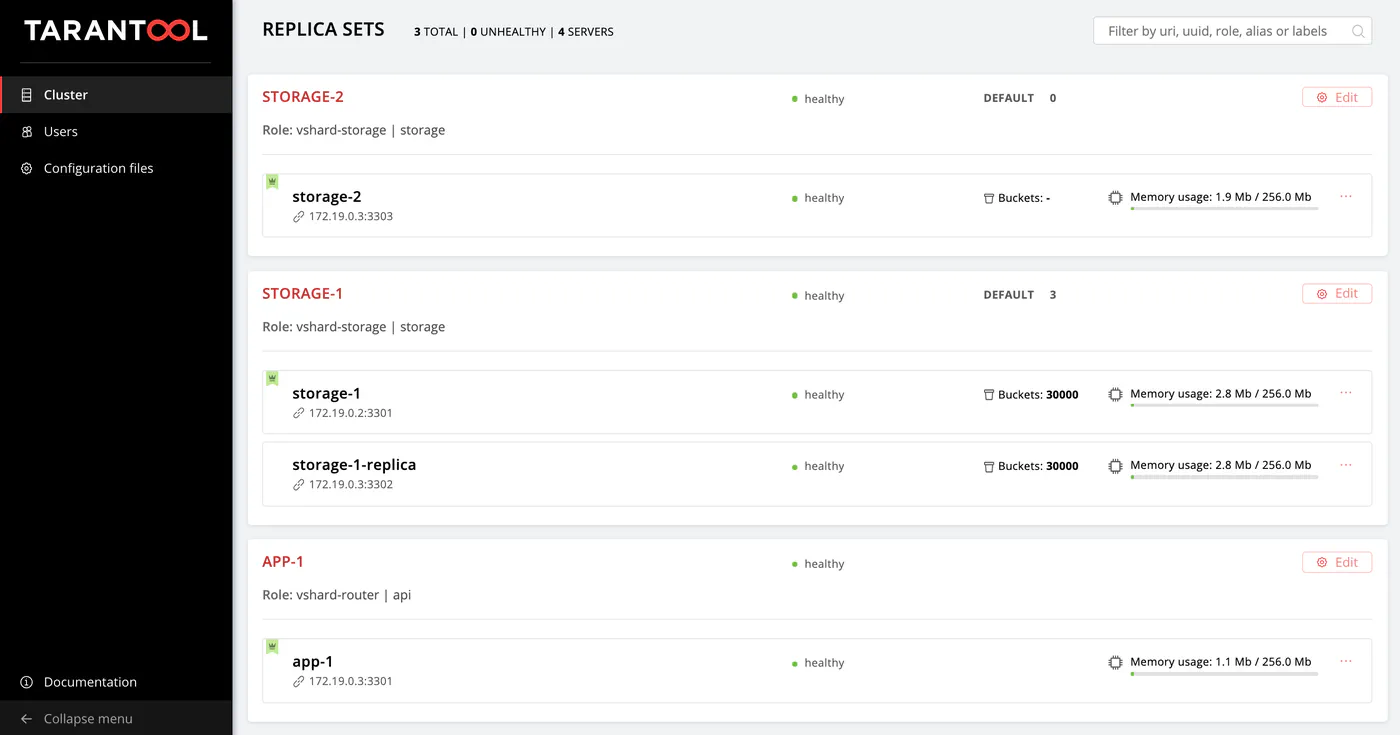

Open the Web UI http://localhost:8181/admin/cluster/dashboard and watch all the buckets flow into storage-1 :

Assign the expelled flag to the storage-2 leader and say goodbye to this replica set:

---
all:
  vars:
    ...
  hosts:
    ...
    storage-2:
      config:
        advertise_uri: '172.19.0.3:3303'
        http_port: 8184
      expelled: true  # <==
  ...

$ ansible-playbook -i hosts.yml playbook.yml
                   --tags cartridge-replicasets

Note that we did not specify the limit option this time since at least one of the instances with the running playbook must not be marked as expelled. So we’re back to the original topology:

Authorization

Let’s take our minds off replica set control and think about safety. Now any unauthorized user can manage the cluster via Web UI. We have to admit; it doesn’t look too good.

With Cartridge, you can connect your own authorization module, such as LDAP (or whatever), and use it to manage users and their access to the application. But here we’ll be using the built-in authorization module that Cartridge uses by default. This module allows you to perform basic operations with users (delete, add, edit) and implements password verification.

Please note that our Ansible role requires the authorization backend to implement all these functions.

Okay, we need to put theory into practice now. First, we are going to make authorization mandatory, set the session parameters, and add a new user:

---
all:
  vars:
    ...

    # authorization
    cartridge_auth:  # <==
      enabled: true   # enable authorization
      cookie_max_age: 1000
      cookie_renew_age: 100

      users:  # cartridge users to set up
        - username: dokshina
          password: cartridge-rullez
          fullname: Elizaveta Dokshina
          email: dokshina@example.com
          # deleted: true  # uncomment to delete user
    ...

Authorization is managed within the cartridge-config  tasks, so specify this tag:

$ ansible-playbook -i hosts.yml playbook.yml
                   --tags cartridge-config

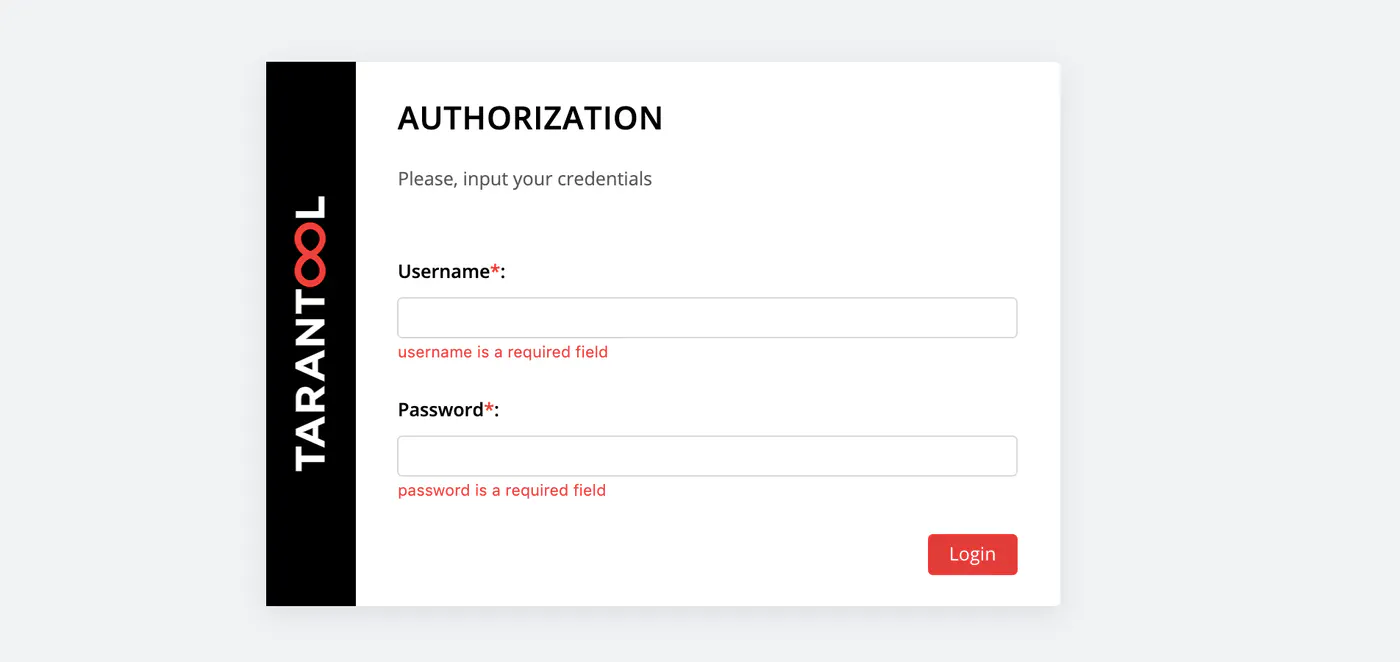

Now http://localhost:8181/admin/cluster/dashboard has a surprise for you:

You can log in with the username and password of the new user, or as admin , the default user. The password is a cluster cookie; we have specified this value in the cartridge_cluster_cookie  variable (it is app-default-cookie , don’t bother to check).

After a successful login, we open the Users tab to make sure that everything goes well:

Try adding new users and changing their parameters. To delete a user, specify the deleted: true  flag for that user. The email and fullname values are not used by Cartridge, but you can specify them for your convenience.

Application configuration

Let’s step back and skim through the whole story.

We have deployed a small application that stores data about customers and their bank accounts. As you may recall, this application has two implemented roles: api and storage . The storage role deals with data storage and sharding using the integrated vshard-storage  role. The second role (or api ) implements an HTTP server with an API for data management. It also has another integral standard role (vshard-router ) that controls sharding.

So, we send the first request to the application API to add a new client:

$ curl -X POST -H "Content-Type: application/json"
               -d '{"customer_id":1, "name":"Elizaveta", "accounts":[{"account_id": 1}]}'
               http://localhost:8182/storage/customers/create

In return, we get something like this:

{"info":"Successfully created"}

Note that in the URL we have specified the 8082 port of the app-1  instance as this is the port for the API.

Now we update the balance of the new user:

$ curl -X POST -H "Content-Type: application/json"
               -d '{"account_id": 1, "amount": "1000"}'
               http://localhost:8182/storage/customers/1/update_balance

We see the updated balance in the response:

{"balance":"1000.00"}

All right, it works! The API is implemented, Cartridge takes care of data sharding, we have already configured the failover priority in case of emergency and enabled authorization. It’s time to get down to configuring the application.

The current cluster configuration is stored in a distributed configuration file. Each instance stores a copy of this file, and Cartridge ensures that it is synchronized among all the nodes in the cluster. We can specify the role configuration of our application in this file, and Cartridge will make sure that the new configuration is distributed across all the instances.

Let’s take a look at the current contents of this file. Go to the Configuration files  tab and click on the Download button:

--- []
...

In fact, the cluster configuration file is not empty: it stores the current topology, authorization settings, and sharding parameters. Cartridge does not share this information so easily; the file is intended for internal use, and therefore stored in hidden system sections that you cannot edit.

Each application role can use one or more configuration sections. The new configuration is loaded in two steps. First, all the roles verify that they are ready to accept the new parameters. If there are no problems, the changes are applied; otherwise, the changes are rolled back.

Now get back to the application. The api role uses the max-balance  section, where the maximum allowed balance for a single client account is stored. Let’s configure this section using our Ansible role (not manually, of course).

So now the application configuration (more precisely, the available part) is an empty table. Now add a max-balance  section there with a value of 100000 , and specify the cartridge_app_config  variable in the inventory file:

---
all:
  vars:
    ...
    # cluster-wide config
    cartridge_app_config:  # <==
      max-balance:  # section name
        body: 1000000  # section body
        # deleted: true  # uncomment to delete section max-balance
    ...

We have specified a section name (max-balance ) and its contents (body ). The content of the section can be more than just a number; it can also be a table or a string depending on how the role is written and what type of value you want to use. Run:

$ ansible-playbook -i hosts.yml playbook.yml
                   --tags cartridge-config

And check that the maximum allowed balance has indeed changed:

$ curl -X POST -H "Content-Type: application/json"
               -d '{"account_id": 1, "amount": "1000001"}'
               http://localhost:8182/storage/customers/1/update_balance

In return, we get an error, just as we wanted:

{"info":"Error","error":"Maximum is 1000000"}

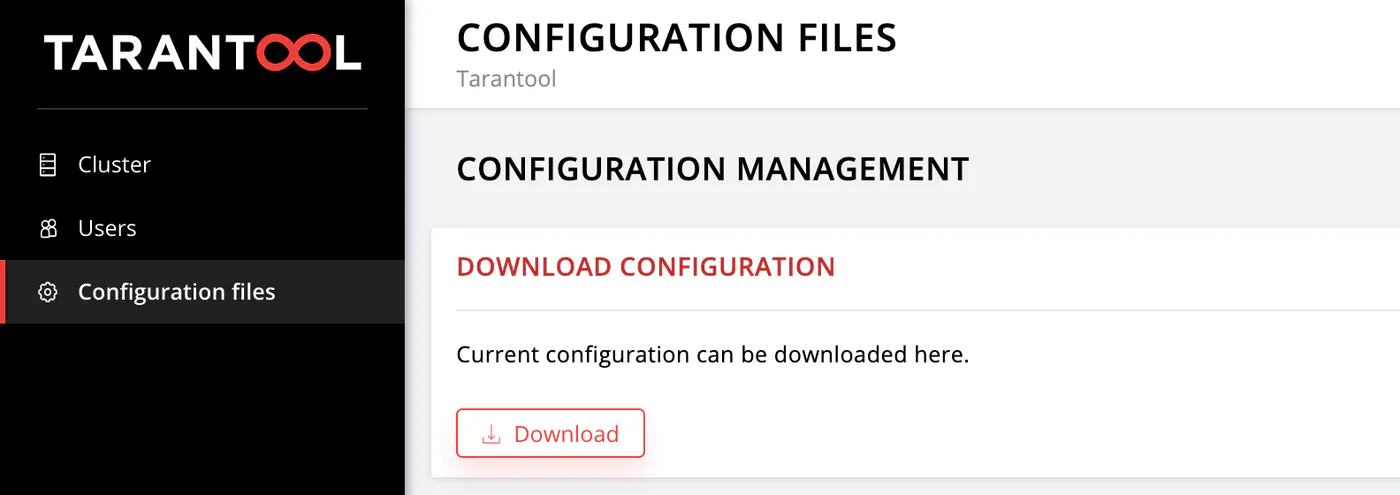

You can download the configuration file from the Configuration files  tab once again to make sure the new section is there:

---
max-balance: 1000000
...

Try adding new sections to the application configuration, change their contents, or delete them altogether (to do this, you need to set the deleted: true flag in the section):

For more information on using the distributed configuration in roles, see the Tarantool Cartridge documentation.

Don’t forget to run vagrant halt to stop the virtual machines when you’re done.

Summary

Last time we learned how to deploy distributed Tarantool Cartridge applications using a special Ansible role. Today we updated the application and learned how to manage application topology, sharding, authorization, and configuration.

As a next step, you can try different approaches to writing Ansible Playbook and use your apps in the most convenient way.

If something doesn’t work or you have ideas on how to improve our Ansible role, please feel free to create a ticket. We are always happy to help and open to any ideas and suggestions! ∎
