Deploying Tarantool Cartridge Applications with Zero Effort (Part 1)

by Elizaveta Dokshina

Tarantool is an open-source in-memory DB with a Lua application server on board. It’s best used for apps that require high performance and horizontal scaling. Out of the box we support horizontal scaling via the vshard module. There are quite a few things that you have to keep in mind when you work on your business logic, though. Not ideal.

We made it easier. All the lessons learned from creating distributed apps resulted in a framework called Tarantool Cartridge. It simplifies the whole app lifecycle – coding, testing, CI/CD, deployment, and support.

This article shows Tarantool Cartridge in action - what it does for you with a special Ansible role:

  • deploys your app to the cluster
  • starts up all instances
  • unites the instances into a cluster
  • sets up authorisation
  • bootstraps vshard (horizontal scaling)
  • turns on automatic failover
  • patches cluster configuration
  • and keeps it all running smoothly!

See all of that with schemas and screenshots of the web-based GUI. Let’s dive right into it!

Starting off with a sample

Let us walk you through only some of the role’s functions. You can always find a full description of all its features and input parameters in the documentation. However, trying once is better than seeing it a hundred times, so let us deploy a small application.

Tarantool Cartridge has a tutorial for creating a small Cartridge application that stores information about bank customers and their accounts, as well as provides an API for data management via HTTP. For this purpose, the application describes two possible roles that can be assigned to the instances: api and storage. Roles are Lua modules that implement some instance-specific functions and/or logic.

Cartridge itself does not say anything about how to start processes — it only provides an opportunity to configure the running instances. So, the rest of it is up to the user: distributing configuration files, running services, and configuring topology. But we’re not going to do all of that — Ansible will do it for us.

Getting down to action

First, let us deploy our application onto two virtual machines and set up a simple topology:

  • The app-1 replica set will represent the api role that contains the vshard-router role. There will be just one instance.
  • The storage-1 replica set will represent the storage role (including the vshard-storage role) — here we will add two instances from different machines.

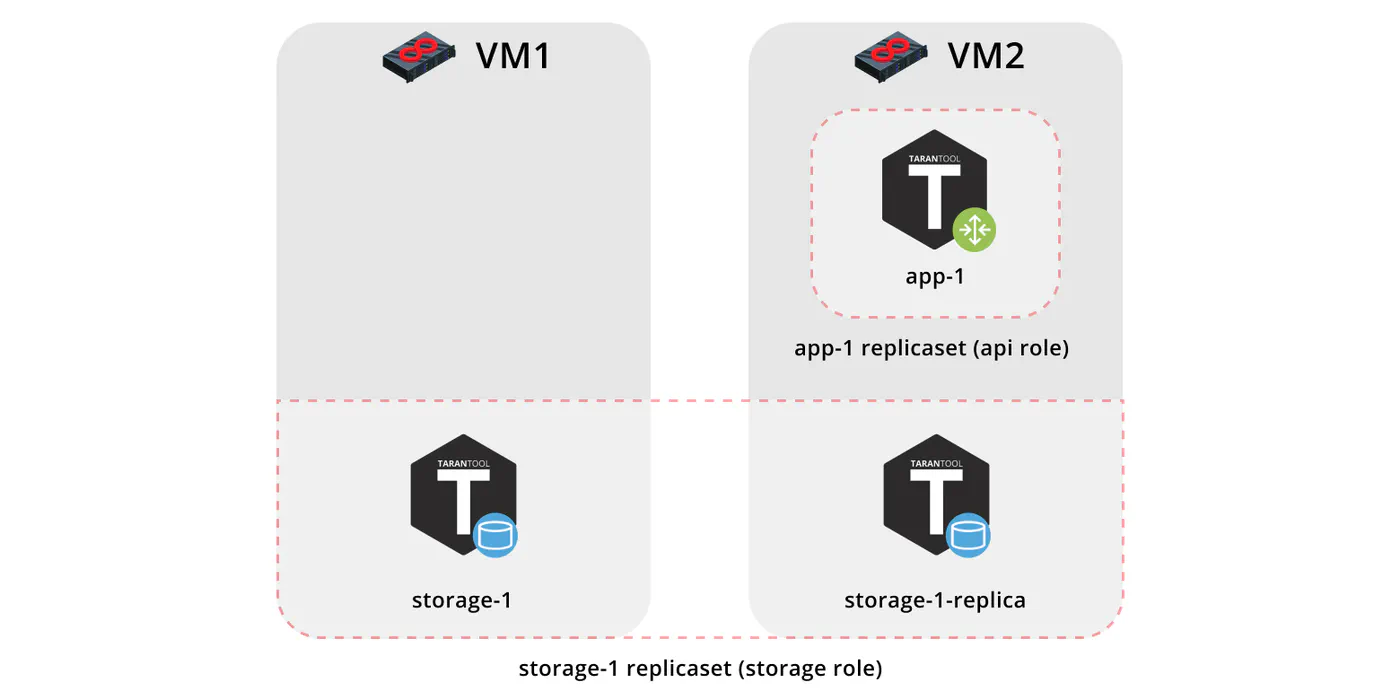

Storage-1 replicaset
To run the sample, we will need Vagrant and Ansible (version 2.8 or higher).

The role itself is stored in Ansible Galaxy — a repository that allows you to share your work and use the ready-made roles.

Now clone the sample repository:

$ git clone https://github.com/dokshina/deploy-tarantool-cartridge-app.git
$ cd deploy-tarantool-cartridge-app && git checkout 1.0.0

Then deploy the virtual machines:

$ vagrant up

After that, install the Tarantool Cartridge Ansible role:

$ ansible-galaxy install tarantool.cartridge,1.1.0

And start the installed role:

$ ansible-playbook -i hosts.yml playbook.yml

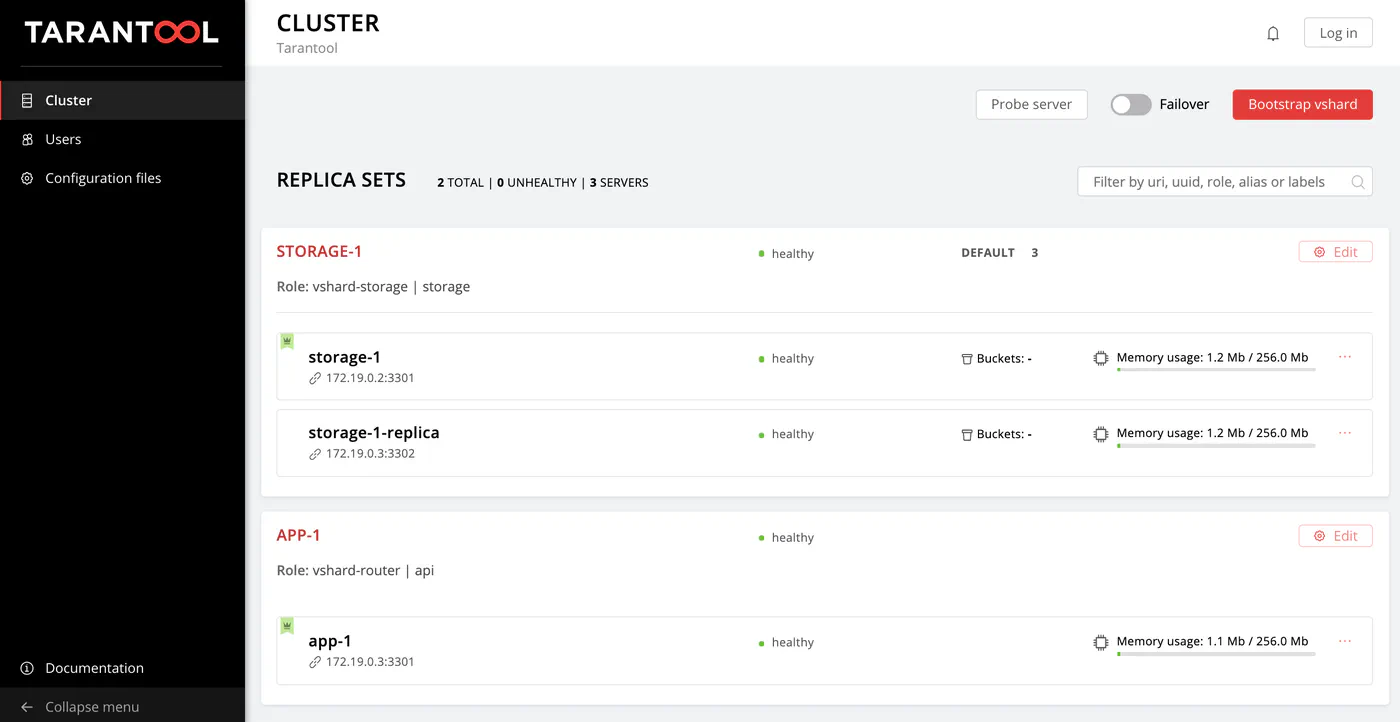

Now wait until the playbook process is finished, go to http://localhost:8181/admin/cluster/dashboard and enjoy the results:

tarantool dashboard

You can upload the data now. Awesome, isn’t it?

Now let’s figure out how to work with it, and we may as well add another replica set to the topology.

Getting deeper into details

So, what happened?

We got two virtual machines up and running and launched the Ansible playbook that configured our cluster. Now let’s look inside the playbook.yml file:

---
- name: Deploy my Tarantool Cartridge app
  hosts: all
  become: true
  become_user: root
  tasks:
  - name: Import Tarantool Cartridge role
    import_role:
      name: tarantool.cartridge

Nothing interesting happens here; let’s launch the Ansible role called tarantool.cartridge.

The most important things (namely, the cluster configuration) is in the hosts.yml inventory file:

---
all:
  vars:
    # common cluster variables
    cartridge_app_name: getting-started-app
    cartridge_package_path: ./getting-started-app-1.0.0-0.rpm  # path to package

    cartridge_cluster_cookie: app-default-cookie  # cluster cookie

    # common ssh options
    ansible_ssh_private_key_file: ~/.vagrant.d/insecure_private_key
    ansible_ssh_common_args: '-o IdentitiesOnly=yes -o UserKnownHostsFile=/dev/null -o StrictHostKeyChecking=no'

  # INSTANCES
  hosts:
    storage-1:
      config:
        advertise_uri: '172.19.0.2:3301'
        http_port: 8181

    app-1:
      config:
        advertise_uri: '172.19.0.3:3301'
        http_port: 8182

    storage-1-replica:
      config:
        advertise_uri: '172.19.0.3:3302'
        http_port: 8183

  children:
    # GROUP INSTANCES BY MACHINES
    host1:
      vars:
        # first machine connection options
        ansible_host: 172.19.0.2
        ansible_user: vagrant

      hosts:  # instances to be started on the first machine
        storage-1:

    host2:
      vars:
        # second machine connection options
        ansible_host: 172.19.0.3
        ansible_user: vagrant

      hosts:  # instances to be started on the second machine
        app-1:
        storage-1-replica:

    # GROUP INSTANCES BY REPLICA SETS
    replicaset_app_1:
      vars:  # replica set configuration
        replicaset_alias: app-1
        failover_priority:
          - app-1  # leader
        roles:
          - 'api'

      hosts:  # replica set instances
        app-1:

    replicaset_storage_1:
      vars:  # replica set configuration
        replicaset_alias: storage-1
        weight: 3
        failover_priority:
          - storage-1  # leader
          - storage-1-replica
        roles:
          - 'storage'

      hosts:   # replica set instances
        storage-1:
        storage-1-replica:

All we need to do is learn how to manage instances and replica sets by modifying this file. Later on, we will add new sections to it. In order to avoid confusion while adding the sections, look at the final version of this file, or hosts.updated.yml, which is located in the sample repository.

In Ansible terms, each instance is a host (not to be confused with a physical server), i.e. the infrastructure node that Ansible will manage. For each host, we can specify connection parameters (such as ansible_host and ansible_user) and instance configuration.

The instance description is in the hosts section. Let’s look into the configuration of the storage-1 instance:

---
all:
  vars:
    ...

  # INSTANCES
  hosts:
    storage-1:
      config:
        advertise_uri: '172.19.0.2:3301'
        http_port: 8181

  ...

In the config variable, we specified the instance parameters: advertise URI and HTTP port.

Below are the parameters of the app-1 and storage-1-replica instances.

We should provide Ansible with connection parameters for each instance. It seems reasonable to group the instances by virtual machines. For this purpose, the instances are grouped together under host1 and host2, and each group in the vars section contains the ansible_host and ansible_user parameter values for a single virtual machine. And the hosts section contains hosts (or instances) included in this group:

---
all:
  vars:
    ...
  hosts:
    ...
  children:
    # GROUP INSTANCES BY MACHINES
    host1:
      vars:
        # first machine connection options
        ansible_host: 172.19.0.2
        ansible_user: vagrant
       hosts:  # instances to be started on the first machine
        storage-1:

     host2:
      vars:
        # second machine connection options
        ansible_host: 172.19.0.3
        ansible_user: vagrant
       hosts:  # instances to be started on the second machine
        app-1:
        storage-1-replica:

Let’s start editing hosts.yml. Now we add two more instances: storage-2-replica on the first virtual machine and storage-2 on the second one:

---
all:
  vars:
    ...

  # INSTANCES
  hosts:
    ...
    storage-2:  # <==
      config:
        advertise_uri: '172.19.0.3:3303'
        http_port: 8184

    storage-2-replica:  # <==
      config:
        advertise_uri: '172.19.0.2:3302'
        http_port: 8185

  children:
    # GROUP INSTANCES BY MACHINES
    host1:
      vars:
        ...
      hosts:  # instances to be started on the first machine
        storage-1:
        storage-2-replica:  # <==

    host2:
      vars:
        ...
      hosts:  # instances to be started on the second machine
        app-1:
        storage-1-replica:
        storage-2:  # <==

Start the Ansible playbook:

$ ansible-playbook -i hosts.yml
                   --limit storage-2,storage-2-replica
                   playbook.yml

Note the --limit option. Since each cluster instance is a host in terms of Ansible, we can explicitly specify which instances should be configured when running the playbook.

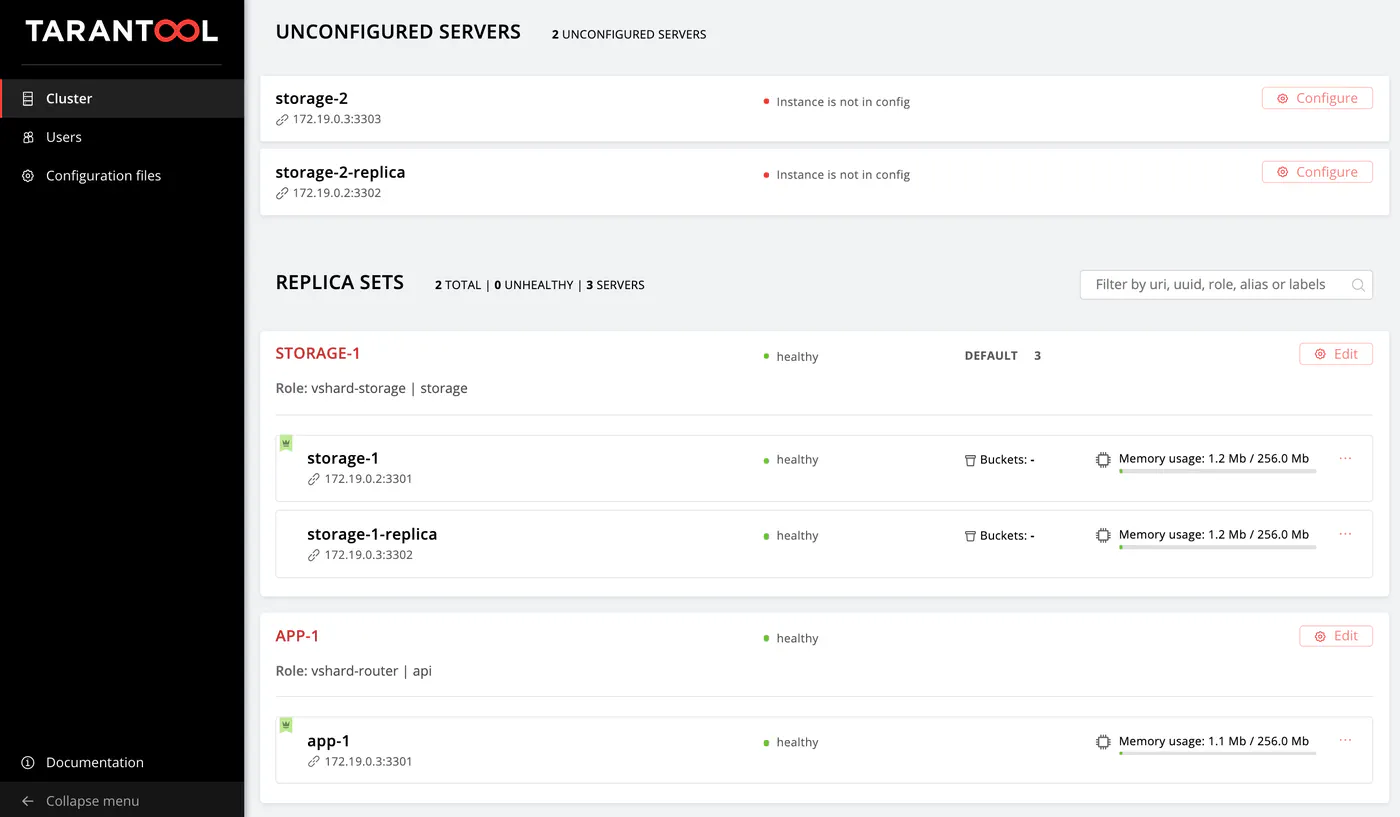

So we go back to the web UI at http://localhost:8181/admin/cluster/dashboard and look at our new instances:

Tarantool new instances in dashboard

Next, let’s master topology management.

Managing the topology

Let us group our new instances into the storage-2 replica set, add a new group of replicaset_storage_2, and describe the replica set parameters in the variables as we did for replicaset_storage_1. In the hosts section, we specify which instances should be included in this group (i.e. our replica set):

---
all:
  vars:
    ...
  hosts:
    ...
  children:
    ...
    # GROUP INSTANCES BY REPLICA SETS
    ...
    replicaset_storage_2:  # <==
      vars:  # replicaset configuration
        replicaset_alias: storage-2
        weight: 2
        failover_priority:
          - storage-2
          - storage-2-replica
        roles:
          - 'storage'

      hosts:   # replicaset instances
        storage-2:
        storage-2-replica:

Then we run the playbook again:

$ ansible-playbook -i hosts.yml
                   --limit replicaset_storage_2
                   --tags cartridge-replicasets
                   playbook.yml

This time we pass the name of the group corresponding to our replica set in the --limit parameter.

Let’s look at the tags option.

Our role successively executes various tasks marked with the following tags:

  • cartridge-instances: instance management (configuration, membership);
  • cartridge-replicasets: topology management (replica set management and permanent removal (expel) of instances from the cluster);
  • cartridge-config: control of other cluster parameters (vshard bootstrapping, automatic failover, authorization parameters, and application configuration).

We can explicitly specify what part of the work we want to be done — and the role will skip the rest of the tasks. In this case, we only want to work with topology, so we specify cartridge-replicasets.

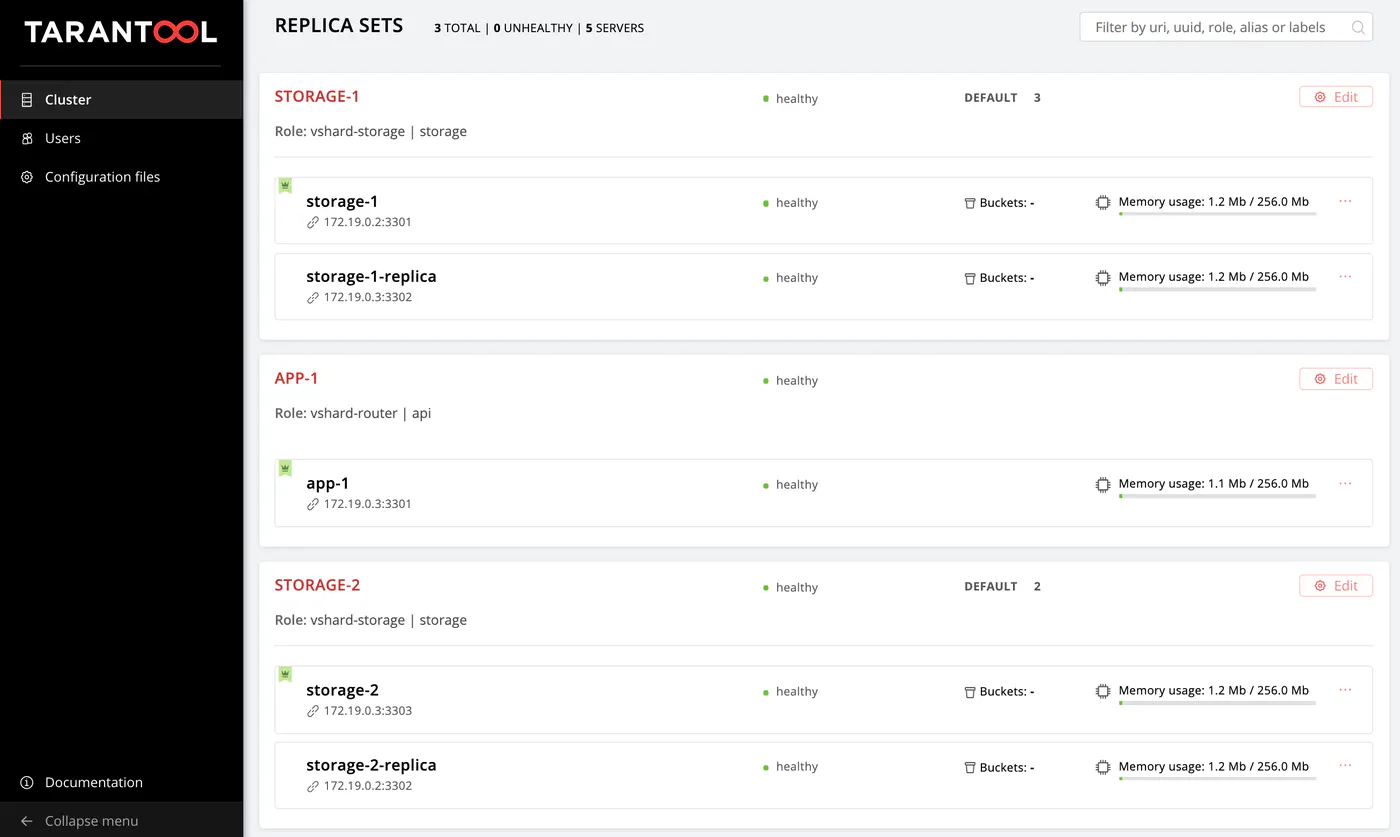

Let us evaluate the result of our efforts. Find the new replica set at http://localhost:8181/admin/cluster/dashboard.

Tarantool new replicaset

Yay!

Try changing the configuration of the instances and replica sets and see how the topology of the cluster changes. You can try different use cases, such as rolling update or memtx_memory increase. The role would try to do this without restarting the instance to reduce the possible downtime of your application.

Don’t forget to run vagrant halt to stop the virtual machines when you’re done with them.

What’s inside?

Here I will tell you more about what happened under the hood of the Ansible role during our tests.

Let’s consider the steps of deploying a Cartridge application.

Installing the package and starting the instances

The first thing to do is to deliver the package to the server and install it. Now the role can work with RPM-packages and DEB-packages.

Next, we launch the instances. It is very simple: every instance is a separate systemd service. For example:

$ systemctl start myapp@storage-1

This command launches the storage-1 instance of the myapp application. The running instance looks for its configuration in /etc/tarantool/conf.d/. You can view the instance logs using journald.

The Unit file /etc/systemd/systemd/myapp@.sevice for the systemd service is delivered with the package.

Ansible has built-in modules for installing packages and managing systemd services, so we did not invent anything new here.

Configuring the cluster topology

The most exciting things happen here. I am sure you would agree that it is strange to bother with a special Ansible role for installing packages and running systemd services.

You can configure the cluster manually:

  • The first option is to open the Web UI and click on the buttons. It is quite suitable for a one-time start of several instances.
  • The second option is to use GraphQL API. Here you can already automate something, for example, write a script in Python.
  • The third option is for the courageous: go to the server, connect to one of the instances with the help of tarantoolctl connect and perform all the necessary actions with the cartridge Lua module.

The main task of our invention is to do this most difficult part of the work for you.

Ansible allows you to write your own module and use it in your role. Our role uses these modules to manage the various cluster components.

How does it work? You describe the desired state of the cluster in a declarative configuration, and the role gives each module its own configuration section as input. The module receives the current state of the cluster and compares it with the input. Then the code for the necessary cluster state is launched using the socket of one of the instances.

Results

Today we have shown you how to deploy your Tarantool Cartridge application and configure a simple topology. To do this, we used Ansible, a powerful tool that is easy to use and allows you to configure multiple infrastructure nodes at the same time (in our case, the cluster instances).

Above we went over one of the many ways to describe the cluster configuration by means of Ansible. Once you feel that you are ready for more, learn the best practices for writing playbooks. You may find it easier to manage the topology with group_vars and host_vars.

Very soon, we will tell you how to remove (expel) instances from the topology permanently, bootstrap vshard, manage automatic failover, configure authorization, and patch cluster configuration. In the meantime, you can review the documentation yourself and try changing cluster settings.

If something goes wrong, make sure to let us know about the problem. We will do our best to resolve any issue!
